Rear body I FOR SR H2O NEW (IE+Carb.) FROM 2008

Free shipping for all orders to United Kingdom over £150! See conditions.

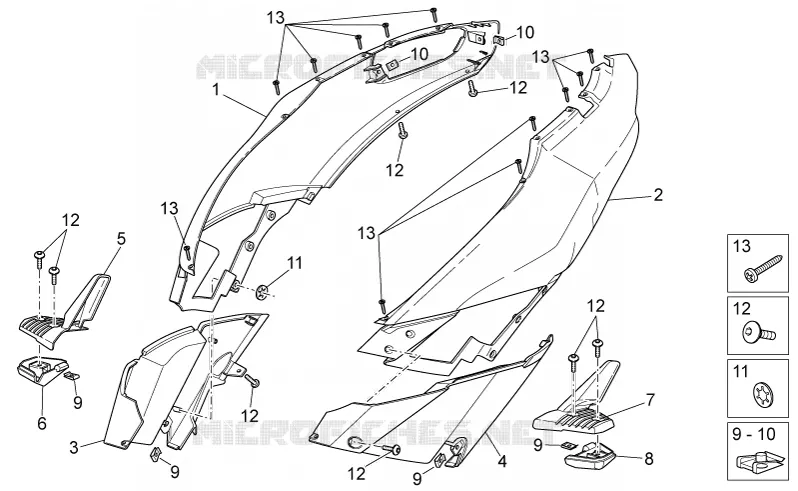

Rear body I

1

RH side panel, red

AP8268729

Not Available

1

RH side panel, blue

AP8268342

Not Available

1

RH side panel, silver

AP8268568

Not Available

1

RH side panel, orange

AP8268887

Not Available

1

RH side panel, orange

AP8268299

Not Available

1

RH side panel, white

AP8268512

Not Available

1

RH side panel, black

AP8268049

Not Available

1

RH side panel, white

AP8268310

Not Available

1

RH side panel, yellow

AP8268588

£76,14 Unit Price incl. VAT

1

RH side panel, silver

AP8268874

Not Available

1

RH side panel, black

AP8268578

£216,55 Unit Price incl. VAT

1

RH side panel, red

AP8269184

Not Available

1

RH side panel, red

AP8179908

Not Available

1

RH side panel, white

AP8268896

Not Available

1

RH side panel, black

AP8268865

Not Available

1

RH side panel, green

AP8268985

£206,24 Unit Price incl. VAT

2

LH side panel, black

AP8268866

£206,24 Unit Price incl. VAT

2

LH side panel, green

AP8268986

Not Available

2

LH side panel, silver

AP8268875

Not Available

2

LH side panel, orange

AP8268888

£216,55 Unit Price incl. VAT

2

LH side panel, white

AP8268513

Not Available

2

LH side panel, white

AP8268897

Not Available

2

LH side panel, blue

AP8268343

Not Available

2

LH side panel, yellow

AP8268589

£76,14 Unit Price incl. VAT

2

LH side panel, white

AP8268311

£70,38 Unit Price incl. VAT

2

LH side panel, red

AP8268730

Not Available

2

LH side panel, red

AP8269185

Not Available

2

LH side panel, red

AP8179909

Not Available

2

LH side panel, orange

AP8268300

Not Available

2

LH side panel, black

AP8268579

Not Available

2

LH side panel, black

AP8268050

£206,24 Unit Price incl. VAT

2

LH side panel, silver

AP8268569

Not Available

3

RH Pillar, grey

AP8268075

£38,23 Unit Price incl. VAT

4

LH Pillar, grey

AP8268076

£38,23 Unit Price incl. VAT

5

RH cover rear footr., silver

AP8268081

Not Available

6

RH Footrest housing, black

AP8268080

Not Available

7

LH cover rear footr., silver

AP8268262

£10,51 Unit Price incl. VAT

8

Left footrest bottom grey

AP8268263

Not Available

9

Clip M5

AP8102375

£2,20 Unit Price incl. VAT

10

Clip M4

AP8102381

£4,02 Unit Price incl. VAT

11

Washer for shafts D5

AP8150450

£2,20 Unit Price incl. VAT

12

Screw w/ flange M5x16

AP8152298

£3,48 Unit Price incl. VAT

13

Self-tap screw 3,9x14

AP8150413

£1,61 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
