Rear body I for Shiver from 2007

Free shipping for all orders to United Kingdom over £150! See conditions.

Rear body I

1

Saddle compartment

851672

£31,78 Unit Price incl. VAT

2

RH rear fairing, orange

85166700XA1

£234,30 Unit Price incl. VAT

2

RH rear fairing, black

85166700XN6

Not Available

2

RH rear fairing, grey

85166700EE

£234,30 Unit Price incl. VAT

2

RH rear fairing, blue

85166700XD1

£53,08 Unit Price incl. VAT

2

RH rear fairing, white

85166700XB1

£53,08 Unit Price incl. VAT

2

RH rear fairing, black

85166700XN2

Not Available

3

LH rear fairing, grey

85166800EE

Not Available

3

LH rear fairing, white

85166800XB1

£53,08 Unit Price incl. VAT

3

LH rear fairing, black

85166800XN2

£234,30 Unit Price incl. VAT

3

LH rear fairing, blue

85166800XD1

£234,30 Unit Price incl. VAT

3

LH rear fairing, black

85166800XN6

Not Available

3

LH rear fairing, orange

85166800XA1

Not Available

4

RH side panel

851670

£15,08 Unit Price incl. VAT

5

LH side panel

851669

£15,08 Unit Price incl. VAT

6

Battery cover

851656

£11,99 Unit Price incl. VAT

7

Elastic

AP8120177

£6,95 Unit Price incl. VAT

8

Phillips screw, SWP M5x20

AP8152329

£1,80 Unit Price incl. VAT

9

Screw w/ flange M5x15

AP8152273

£1,88 Unit Price incl. VAT

10

Clip M5

AP8102375

£2,20 Unit Price incl. VAT

11

Nut M10x1,25 6H

833520

£0,76 Unit Price incl. VAT

12

Screw w/ flange M5x12

AP8152302

Not Available

13

Bush

AP8121032

£3,88 Unit Price incl. VAT

14

Heat protection

851676

£35,16 Unit Price incl. VAT

15

Heat protection

854983

£28,25 Unit Price incl. VAT

16

Heat protection

853419

£26,86 Unit Price incl. VAT

17

Heat protection

853420

£26,86 Unit Price incl. VAT

18

Heat protection

854986

£15,07 Unit Price incl. VAT

19

Lat.battery support rubber

AP8144552

£33,10 Unit Price incl. VAT

20

Support rubber part

AP8144553

£32,00 Unit Price incl. VAT

21

Rubber spacer

AP8120001

£5,32 Unit Price incl. VAT

22

Washer 4,3X9X0,8

AP8150158

£1,27 Unit Price incl. VAT

23

Clip M4

AP8102381

£4,02 Unit Price incl. VAT

24

Heat protection

859883

£13,54 Unit Price incl. VAT

25

Support pipe

859884

Not Available

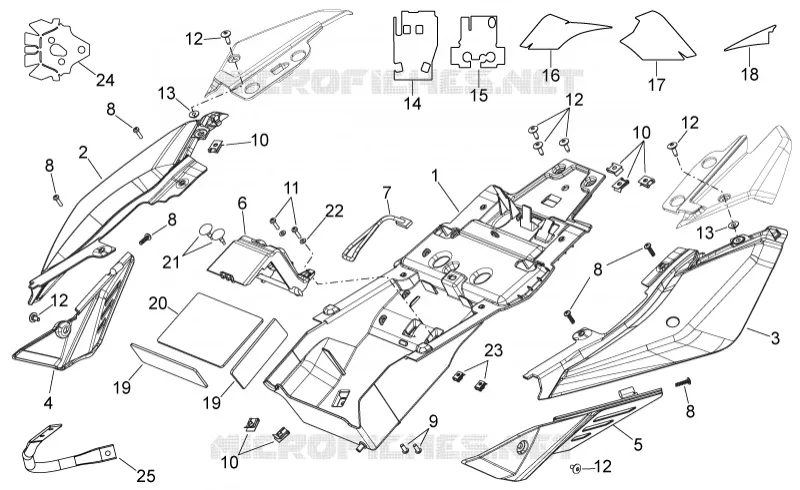

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
