Gear box selector for Shiver from 2007

Free shipping for all orders to United Kingdom over £150! See conditions.

Gear box selector

1

Selector drum

849693

£115,56 Unit Price incl. VAT

2

Fork

849360

£54,59 Unit Price incl. VAT

3

Fork

849468

Not Available

4

Fork shaft

974084

£40,85 Unit Price incl. VAT

5

Index assy. lever

872154

Not Available

6

Gear stop lever spring

871669

Not Available

7

Screw with bushing M6x1x15

879129

£12,65 Unit Price incl. VAT

7

Threaded pin

B013928

£14,62 Unit Price incl. VAT

8

Selector lock plate

871649

£18,92 Unit Price incl. VAT

9

screw

878867

£2,48 Unit Price incl. VAT

10

Gear shaft+spring cpl.

874129

Not Available

11

Flat washer 14x30x1

971718

£1,43 Unit Price incl. VAT

12

Switch plate spring

971719

£7,63 Unit Price incl. VAT

13

Threaded pin M8x1,25

878870

£32,76 Unit Price incl. VAT

14

Shift cam plate

872560

£67,60 Unit Price incl. VAT

15

Selector drum

B013362

Not Available

16

Lever

AP9150069

£8,29 Unit Price incl. VAT

17

Spring

AP9150064

£13,60 Unit Price incl. VAT

18

Spring pillar

AP9150070

£16,34 Unit Price incl. VAT

19

Phonic wheel

878742

£76,33 Unit Price incl. VAT

20

Hex socket screw

844211

Not Available

21

O-ring D23,52x1,78

AP9150479

£3,26 Unit Price incl. VAT

22

Sensor

58188R

£78,37 Unit Price incl. VAT

23

Spacer

974558

£31,90 Unit Price incl. VAT

24

Gasket OR

871901

£1,03 Unit Price incl. VAT

25

Selector lock

974130

£28,14 Unit Price incl. VAT

26

Spring

873695

£7,63 Unit Price incl. VAT

27

Spring pillar

AP9150003

£8,28 Unit Price incl. VAT

28

Plain washer

006175

Not Available

28

Self locking nut

597565

£1,00 Unit Price incl. VAT

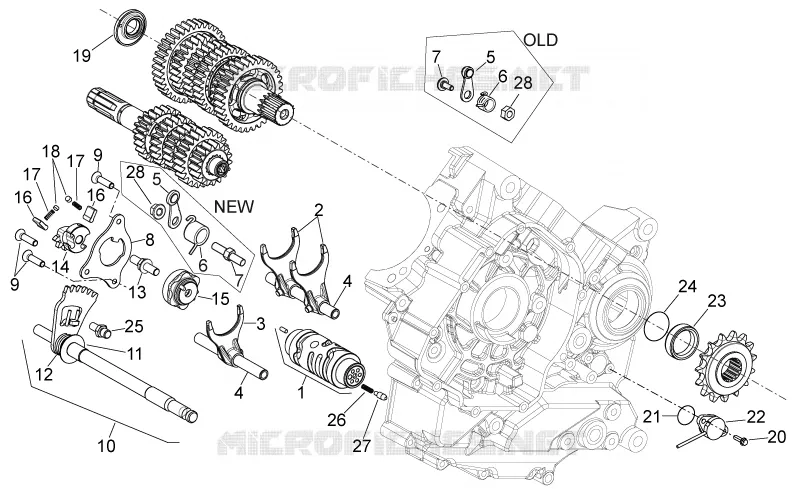

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
