Swing arm for Shiver from 2007

Free shipping for all orders to United Kingdom over £150! See conditions.

Swing arm

1

Swing arm, grey

85178200XE3

Not Available

2

Roller cage

AP8110078

£11,72 Unit Price incl. VAT

3

Ball bearing

AP8110079

£28,38 Unit Price incl. VAT

4

Internal spacer

AP8121570

£52,81 Unit Price incl. VAT

5

Gasket ring

AP8144006

£13,28 Unit Price incl. VAT

6

Inside circlip d37

AP8121204

£1,27 Unit Price incl. VAT

7

O-ring 134

AP8144048

£1,27 Unit Price incl. VAT

8

Gasket ring

AP8144005

£13,28 Unit Price incl. VAT

9

Rear swing arm pin

AP8146520

£200,17 Unit Price incl. VAT

10

Adjustment bush

AP8121200

£28,38 Unit Price incl. VAT

11

Rear int.sw.arm piv.bush

AP8121203

£31,74 Unit Price incl. VAT

12

Swing arm ring nut

AP8121201

£29,36 Unit Price incl. VAT

13

Rear wheel spindle nut

AP8125763

£16,00 Unit Price incl. VAT

14

Wheel pin washer

AP8125687

£1,27 Unit Price incl. VAT

15

LH chain guide plate

AP8144443

£28,00 Unit Price incl. VAT

16

RH chain guide plate

AP8144444

£28,00 Unit Price incl. VAT

17

Chain tens.adjuster screw

AP8152305

£13,28 Unit Price incl. VAT

18

Nut M8

AP8150334

Not Available

19

Rear stand bush

AP8121890

£4,01 Unit Price incl. VAT

20

Screw M6x40

AP8150468

£1,27 Unit Price incl. VAT

21

Chain guide plate

851556

Not Available

22

Hex socket screw

AP8152174

£1,88 Unit Price incl. VAT

23

Cup for shoe

AP8234020

£2,17 Unit Price incl. VAT

24

Chain guard

851557

£42,44 Unit Price incl. VAT

25

Hex socket screw M5x12

AP8152267

£2,36 Unit Price incl. VAT

26

Rear wheel spindle

AP8125831

Not Available

27

Washer 25,2x36x1

AP8152323

£8,57 Unit Price incl. VAT

28

Wheel spindle nut M25x1,5

AP8152324

£13,22 Unit Price incl. VAT

29

Sliding block

854817

£15,84 Unit Price incl. VAT

30

Hex socket screw M5x12

AP8152267

£2,36 Unit Price incl. VAT

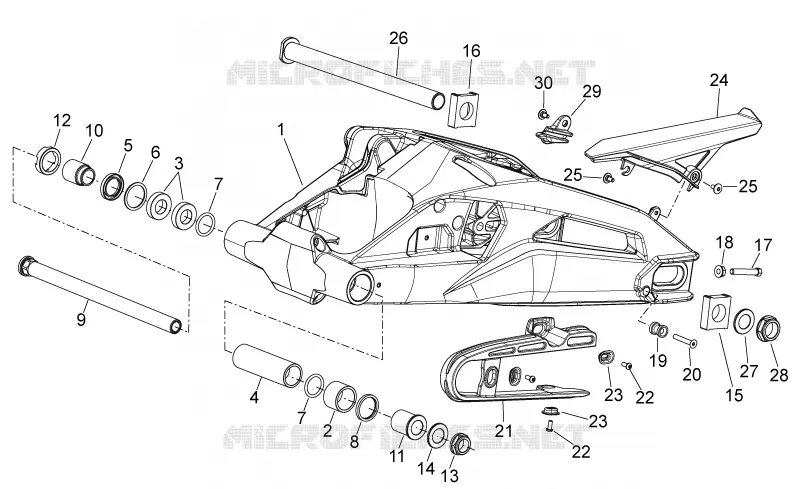

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
