1
Engine displacement
1000
2
Model
RSV4
3
Year
2015
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog

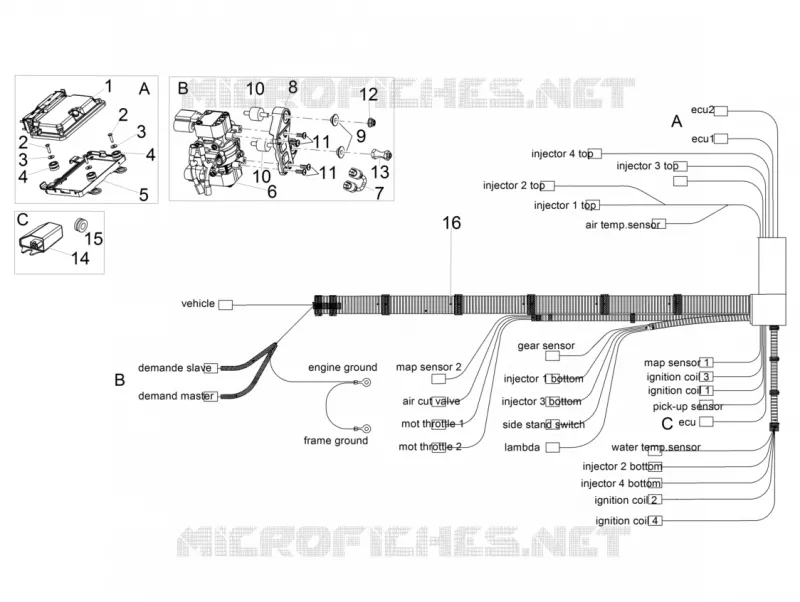

Central electrical system
6
Parts Diagram
Parts Catalog
Fuel vapour recover system
by
Starter / Electric starter
Central electrical system
1
2
2
3
3
4
5
6
7
8
9
9
10
10
11
11
12
13
14
15
16
1
Injection control unit
CM264501
£933,82 Unit Price incl. VAT
2
Self-tap screw 5x14
AP8150509
£1,94 Unit Price incl. VAT
3
Washer 15x5,5X1,2
AP8150382
£1,88 Unit Price incl. VAT
4
Rubber spacer
AP8220150
£3,13 Unit Price incl. VAT
5
Maintenance
858882
£16,07 Unit Price incl. VAT
6
Accelerator position sensor
B044414
£928,16 Unit Price incl. VAT
7
Rubber spacer
854811
£3,79 Unit Price incl. VAT
8
Support bracket
858883
£10,82 Unit Price incl. VAT
9
Bush d.10-h.3,5
AP9100053
£1,76 Unit Price incl. VAT
10
Silent-block
AP8144061
£11,28 Unit Price incl. VAT
11
Self-tap screw 5x14
AP8150509
£1,94 Unit Price incl. VAT
12
Low self-locking nut
AP8150430
£1,27 Unit Price incl. VAT
13
Spacer
893255
£13,43 Unit Price incl. VAT
14
Varable ducts ECU
890932
£238,07 Unit Price incl. VAT
15
Rubber spacer
AP8120405
£5,52 Unit Price incl. VAT
16
Engine wiring
2D000131
£635,10 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
