1
Engine displacement
1000
2
Model
RSV4
3
Year
2015
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog

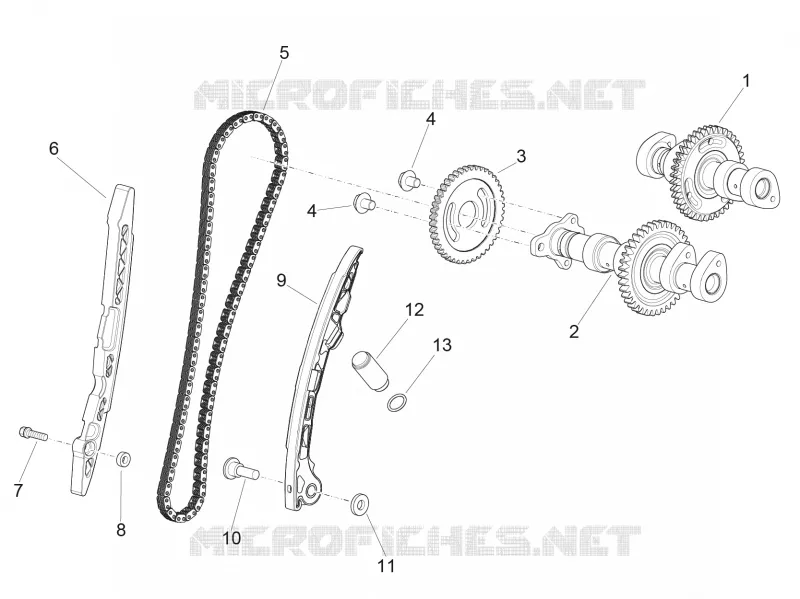

Rear cylinder timing system
6
Parts Diagram
Parts Catalog
Secondary air
by
Head cover
Rear cylinder timing system
1
2
3
4
4
5
6
7
8
9
10
11
12
13
1
Rear exhaust camshaft
2A000329
Not Available
2
Intake camshaft
2A000507
Not Available
3
Timing system gear Z=44
857546
£96,96 Unit Price incl. VAT
4
Screw w/ flange M8x10,3
857008
Not Available
5
Driving chain
897444
£99,10 Unit Price incl. VAT
6
Chain guide plate
2A000559
£16,21 Unit Price incl. VAT
7
Special screw M6x18
857476
Not Available
8
Bushing
857477
£7,85 Unit Price incl. VAT
9
Compl. chain tensioner brake pad
1A004792
Not Available
10
Special screw M8
857094
£15,91 Unit Price incl. VAT
11
Washer 18,5x8,5x3,3
857096
£2,48 Unit Price incl. VAT
12
CHAIN TIGHTENER
1A0047845
Not Available
13
O-ring
857176
£2,12 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
