1
Engine displacement
1000
2
Model
RSV4
3
Year
2015
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog
Lubrication
6

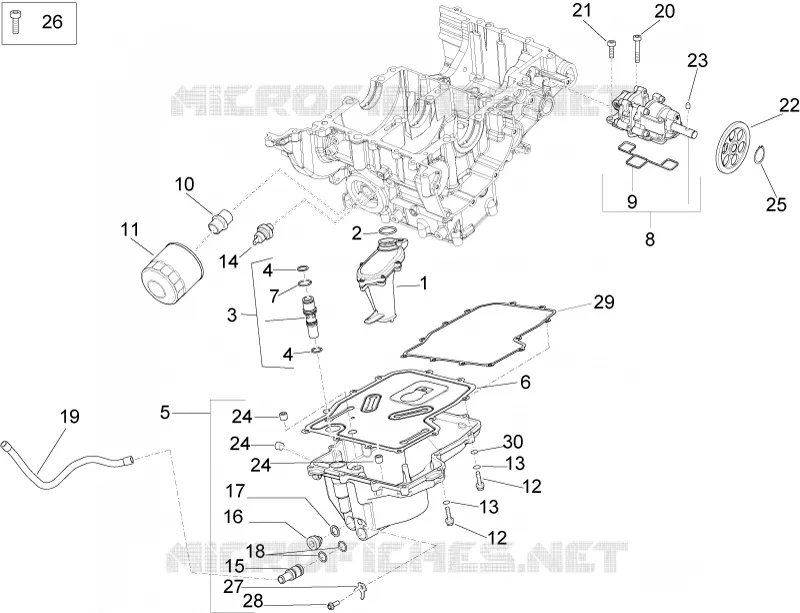

Parts Diagram
Parts Catalog
Front fork Ohlins
by
Front cylinder timing system
Lubrication
1
2
3
4
4
5
6
7
8
9
10
11
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
24
24
25
26
27
28
29
30
1
Oil strainer
2A000595
£49,07 Unit Price incl. VAT
2
Or packing 24x2,5 - 80 FKM
B046072
£7,12 Unit Price incl. VAT
3
Assy overpressure oil valve
2A0002535
Not Available
4
O-ring
857176
£2,12 Unit Price incl. VAT
5
Motor oil cup
2A000331
Not Available
6
Sump gasket
2A000576
£32,02 Unit Price incl. VAT
6
Sump gasket
2A000311
Not Available
7
O-ring
2A000276
£2,44 Unit Price incl. VAT
8
Oil pump
2A000540
£332,02 Unit Price incl. VAT
9
O-ring
857189
£12,88 Unit Price incl. VAT
10
Oil filter union
857168
£15,00 Unit Price incl. VAT
11
Oil filter
857187
Not Available
12
Screw w/ flange M6x30
289731
Not Available
13
Washer
016335
Not Available
13
Spring washer 6,4x11x0,5*
AP8150429
Not Available
14
Oil pressure sensor
641541
Not Available
15
Oil inlet pipe
2A000357
£5,20 Unit Price incl. VAT
16
Cover
857184
£6,22 Unit Price incl. VAT
17
Gasket OR
857147
£2,47 Unit Price incl. VAT
18
O-ring
857176
£2,12 Unit Price incl. VAT
19
Oil pipe
2B001806
£56,04 Unit Price incl. VAT
20
Hex socket screw
277330
£0,89 Unit Price incl. VAT
21
Hex socket screw M6x16
709099
£0,14 Unit Price incl. VAT
22
Pump gear
85273R
£124,97 Unit Price incl. VAT
23
Roller 5X19,8
857192
£7,43 Unit Price incl. VAT
24
Conical threaded plug
B044718
£3,73 Unit Price incl. VAT
25
Circlip
006412
Not Available
26
Hex socket screw M6x20
AP8150044
£1,27 Unit Price incl. VAT
27
Retainer plate
2A000358
£11,33 Unit Price incl. VAT
28
screw TBEI M6x16
2A000621
Not Available
29
Gasket
857452
£34,00 Unit Price incl. VAT
30
Washer 6.4x13x1.5
013777
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
