1
Engine displacement
1000
2
Model
RSV4
3
Year
2015
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog
Handlebar - Controls
6

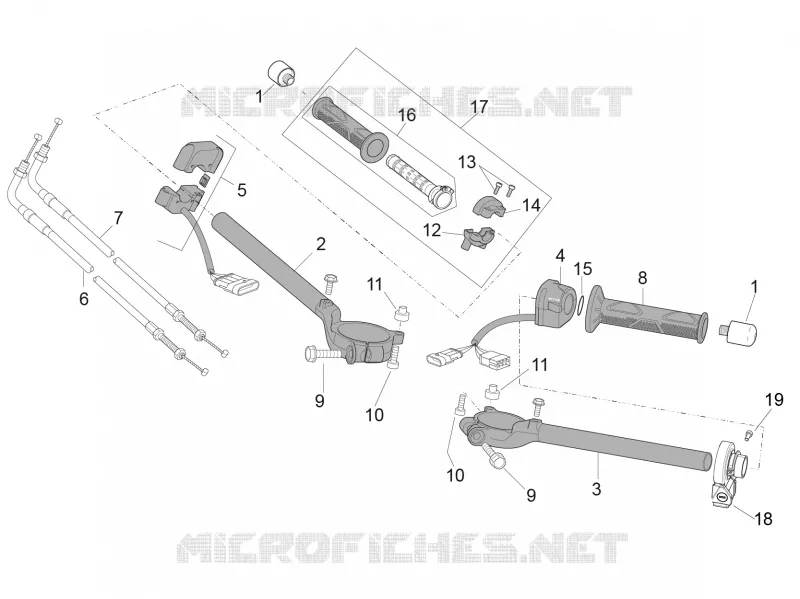

Parts Diagram
Parts Catalog
Clutch
by
Cylinder - Piston
Handlebar - Controls
1
1
2
3
4
5
6
7
8
9
9
10
10
11
11
12
13
14
15
16
17
18
19
1
H.bars anti.v weight
893757
£53,62 Unit Price incl. VAT
2
Right half handlebar
2B0011344
£103,81 Unit Price incl. VAT
3
Left half handlebar
2B0011334
£103,81 Unit Price incl. VAT
4
LH lights selector
896150
£270,05 Unit Price incl. VAT
5
RH lights selector
B045021
£155,14 Unit Price incl. VAT
6
Gas trasmission delivery
899890
Not Available
7
Gas trasmission return
899891
£44,38 Unit Price incl. VAT
8
LH hand grip
856027
£10,19 Unit Price incl. VAT
9
Screw M8x35
AP8150543
£13,28 Unit Price incl. VAT
10
Hex socket screw M6x16
AP8150137
£1,27 Unit Price incl. VAT
11
Spacer bush *
AP8221043
Not Available
12
Front gas lever U-bolt
AP8118502
£30,05 Unit Price incl. VAT
13
Cap screw
AP8118492
£12,65 Unit Price incl. VAT
14
Rear gas lever U-bolt
AP8118503
Not Available
15
O-ring 3075
AP8120190
£4,14 Unit Price incl. VAT
16
LH hand grip
AP8118579
£22,01 Unit Price incl. VAT
17
Throttle cpl.
GU05603331
£190,72 Unit Price incl. VAT
18
Selector control bracket
852398
£141,66 Unit Price incl. VAT
19
Hex socket screw M4x10
AP8152043
£1,88 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
