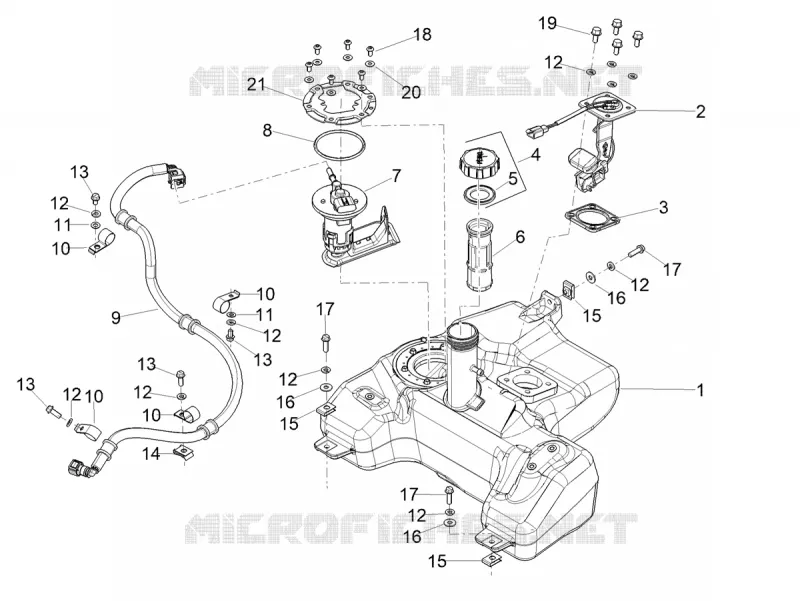

Tank
1
2
3
4
5
6
7
8
9
10
10
10
10
11
11
12
12
12
12
12
12
12
12
13
13
13
13
14
15
15
15
16
16
16
17
17
17
18
19
20
21
1
Reservoir carburant
1B008052
Not Available
2
Indicateur niveau essence
1D003352
£48,12 Unit Price incl. VAT
3
Joint
676200
£19,80 Unit Price incl. VAT
4
Tank cap
1B004165
£6,97 Unit Price incl. VAT
5
Tank cover gasket
656021
£21,35 Unit Price incl. VAT
6
Insert pour embout
675424
£8,95 Unit Price incl. VAT
7
Pompe à carburant
1D002701
£76,87 Unit Price incl. VAT
8
Joint
1B002953
£2,21 Unit Price incl. VAT
9
Tuyau carburant flexible complet
1B008924
£85,44 Unit Price incl. VAT
10
Collier serre-câbles
1B001321
£4,37 Unit Price incl. VAT
11
Flat washer 6,4x12x1
003056
Not Available
12
Spring washer 6,4x11,8x1
016406
Not Available
13
Screw w/ flange M6x10
969296
£1,27 Unit Price incl. VAT
14
Spring plate M6
254485
£1,64 Unit Price incl. VAT
15
Spring plate
CM259204
£0,41 Unit Price incl. VAT
16
Flat washer 16x6,5x1,5
013880
Not Available
17
Hex screw M6x20
018639
Not Available
18
screw
848766
Not Available
19
Screw w/ flange
436788
Not Available
20
Plain washer 12x5.2x1
006078
Not Available
21
Fuel pump spring holder
1B005066
£13,32 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
