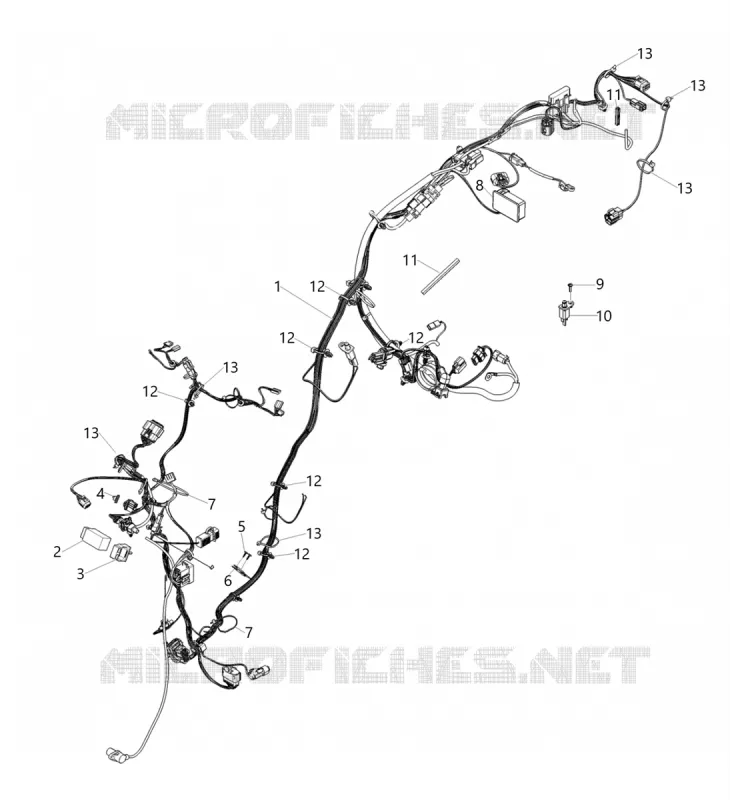

MAIN WIRING HARNESS
1
2
3
4
5
6
7
7
8
9
10
11
11
12
12
12
12
12
12
13
13
13
13
13
13
1
Groupe câbles châssis
1D003341
£324,66 Unit Price incl. VAT
2
Dispositif de commande des clignotants
1D003355
£129,37 Unit Price incl. VAT
3
Flexible support
291017
£13,44 Unit Price incl. VAT
4
Clip de connecteur
639560
£3,61 Unit Price incl. VAT
5
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
6
Bride de boîte à fusibles
CM022808
£3,53 Unit Price incl. VAT
7
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT
8
Ceiling bowl
293154
£14,35 Unit Price incl. VAT
9
Plug screw
268596
£0,62 Unit Price incl. VAT
10
Bouton
583752
Not Available
11
Edge protection
CM023903
£3,08 Unit Price incl. VAT
12
Wiring clip
1D001143
£1,24 Unit Price incl. VAT
13
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
