1
Engine displacement
900
2
Model
DORSODURO
3
Year
2018
4
Trim
Dorsoduro 900 Euro 4 ABS
5
Parts Catalog
ABS BRAKE SYSTEM
6
Parts Diagram
Parts Catalog
REAR BRAKE CALIPER
by
FRAME
ABS BRAKE SYSTEM
1
1
2
2
3
4
5
5
6
6
7
7
8
9
10
11
11
11
12
13
13
14
15
16
17
18
19
20
20
21
22
22
23
23
24
24
25
26
27
28
1
Tuyau de frein AV maître-cylindre-Hecu ABS
2B004126
Not Available
2
Tuyau de frein AV Hecu ABS-étrier
2B004125
£144,90 Unit Price incl. VAT
3
Plate
860468
£34,39 Unit Price incl. VAT
4
ECU ABS Cluster
2D000193
£1 960,50 Unit Price incl. VAT
5
Tuyau de frein AR maître-cylindre-Hecu ABS
2B004129
£62,42 Unit Price incl. VAT
6
Tuyau de frein AR Hecu ABS-étrier
2B004128
£74,28 Unit Price incl. VAT
7
Plate
860484
£34,39 Unit Price incl. VAT
8
Plate
860485
£14,75 Unit Price incl. VAT
9
T bush
AP8121716
£3,42 Unit Price incl. VAT
10
Pre-coated M8x25 hex flange screw
2B002571
£0,38 Unit Price incl. VAT
11
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
12
ABS control unit support
2B004358
£180,19 Unit Price incl. VAT
13
Spacer
860628
£17,06 Unit Price incl. VAT
14
Spacer
860629
£25,14 Unit Price incl. VAT
15
Screw w/ flange M6x35
AP8152282
£1,27 Unit Price incl. VAT
16
Spacer
860667
£7,85 Unit Price incl. VAT
17
Plate
859789
£15,56 Unit Price incl. VAT
18
Plate
860485
£14,75 Unit Price incl. VAT
19
Hex socket screw M6x20
AP8150044
£1,27 Unit Price incl. VAT
20
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
21
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
22
Washer 6,6x18x1,6*
AP8150015
£1,88 Unit Price incl. VAT
23
Spacer 6,5X10X11*
AP8221007
£1,88 Unit Price incl. VAT
24
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
25
Screw w/ flange M6x30
AP8152281
£1,80 Unit Price incl. VAT
26
Bush d.10-h.3,5
AP9100053
£1,76 Unit Price incl. VAT
27
Washer 6,4x15x1
AP8152181
£0,24 Unit Price incl. VAT
28
Oil pressure sensor protection
2B004590
£8,12 Unit Price incl. VAT

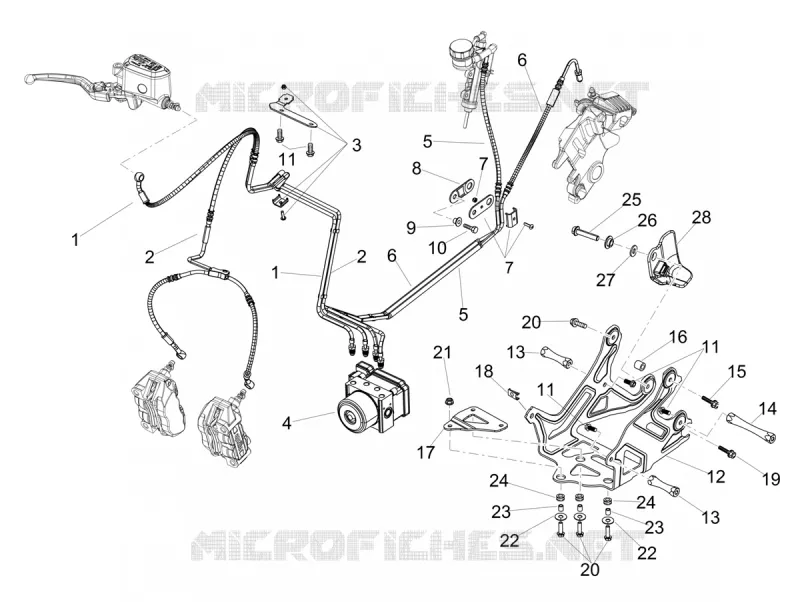

Find the detailed ABS BRAKE SYSTEM APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
