1
Engine displacement
900
2
Model
DORSODURO
3
Year
2018
4
Trim
Dorsoduro 900 Euro 4 ABS
5
Parts Catalog
COOLING SYSTEM
6
Parts Diagram
Parts Catalog
STAND
by
FRONT ELECTRICAL SYSTEM
COOLING SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
23
23
24
24
24
25
26
27
27
28
29
29
30
31
32
33
34
35
35
36
37
37
38
38
39
40
41
42
43
1
Water cooler
897162
£1 116,29 Unit Price incl. VAT
2
Filler cap
AP8144644
£13,60 Unit Price incl. VAT
3
Cover
AP8102615
£57,40 Unit Price incl. VAT
4
Expansion tank
856802
£80,81 Unit Price incl. VAT
5
Expansion tank plug
AP8104836
Not Available
6
3-way pipe
2B003862
£68,24 Unit Price incl. VAT
7
Valve-cooler tube
2B003860
£19,15 Unit Price incl. VAT
8
Cooler-pump pipe
897414
£40,33 Unit Price incl. VAT
9
Water rad.feed pipe
851599
£18,38 Unit Price incl. VAT
10
Fuel pipe d.7x11
890496
£76,72 Unit Price incl. VAT
11
Motor-pump valve tube
2B003861
£11,69 Unit Price incl. VAT
12
Breather pipe
860328
£54,26 Unit Price incl. VAT
13
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
14
T bush *
AP8221145
£9,78 Unit Price incl. VAT
15
Rubber spacer
AP8220366
£0,18 Unit Price incl. VAT
16
Thermostat valve set 85°C
834232
£108,74 Unit Price incl. VAT
17
Pin
AP8121464
£4,82 Unit Price incl. VAT
18
Spacer
AP8161083
£4,68 Unit Price incl. VAT
19
Fan, cpl.
AP8124930
Not Available
20
Screw 4,2x20*
AP8150270
£0,98 Unit Price incl. VAT
21
Washer 5,5x15x1,6
AP8150248
£0,98 Unit Price incl. VAT
22
T bush
AP8221023
£1,64 Unit Price incl. VAT
23
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
24
Hose clamp
CM001924
£5,17 Unit Price incl. VAT
25
Hose clip 290x8,9
AP8201409
£5,15 Unit Price incl. VAT
26
Spring clamp 29/12
CM226909
£2,35 Unit Price incl. VAT
27
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
28
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT
29
Low self-locking nut
AP8150430
£1,27 Unit Price incl. VAT
30
Support radiateur
2B004465
£10,62 Unit Price incl. VAT
31
Hose clip, green D11x6,6x1
AP8120446
£3,25 Unit Price incl. VAT
32
Hose clip D23,5x8*
AP8101743
£3,52 Unit Price incl. VAT
33
Hose clamp
AP8120657
£1,88 Unit Price incl. VAT
34
pipe 5x9
AP8220402
£28,99 Unit Price incl. VAT
35
Hose clamp
CM001914
£1,57 Unit Price incl. VAT
36
Hose clamp
AP8102738
£7,85 Unit Price incl. VAT
37
Hose clamp
CM001905
£1,62 Unit Price incl. VAT
38
Hose clip, green D11x6,6x1
AP8120446
£3,25 Unit Price incl. VAT
39
Hose clip 20x8
AP8102786
£3,46 Unit Price incl. VAT
40
Hose clamp 12,5x8
AP8102239
£3,06 Unit Price incl. VAT
41
Spring clamp 15/12
CM226901
£1,15 Unit Price incl. VAT
42
Bush 10x7
AP9100594
£3,49 Unit Price incl. VAT
43
Entretoise élastique
834040
£5,10 Unit Price incl. VAT

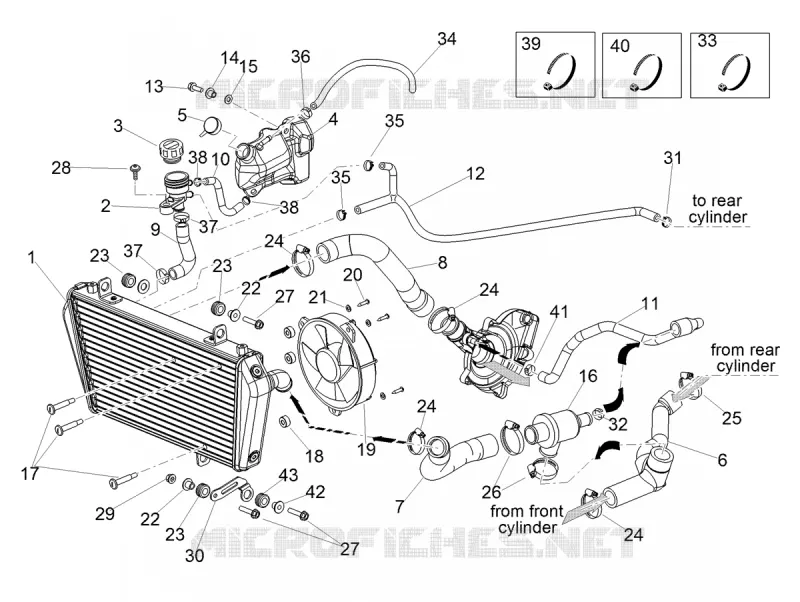

Find the detailed COOLING SYSTEM APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
