1
Engine displacement
900
2
Model
DORSODURO
3
Year
2018
4
Trim
Dorsoduro 900 Euro 4 ABS
5
Parts Catalog
REAR BRAKE MASTER CYLINDER
6
Parts Diagram
Parts Catalog
EXHAUST MUFFLER
by
REAR BRAKE CALIPER
REAR BRAKE MASTER CYLINDER
1
2
3
4
4
5
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
1
Brake m.cyl,. w/ reservoir
860426
£232,16 Unit Price incl. VAT
2
Stop switch
854973
£84,01 Unit Price incl. VAT
3
Lever pin
884033
Not Available
4
O-ring 11,11x1,78
AP8144007
£1,39 Unit Price incl. VAT
5
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
6
Washer 10,5x21x2*
AP8150020
£1,88 Unit Price incl. VAT
7
Rear brake lever spring
AP8121126
£3,05 Unit Price incl. VAT
8
Pivot fix. ressort
2B004785
£31,21 Unit Price incl. VAT
9
Nut M6
AP8150026
£0,96 Unit Price incl. VAT
10
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
11
Levier de frein arrière
2B002641
£96,49 Unit Price incl. VAT
12
Hex socket screw M6x20
AP8224470
£1,27 Unit Price incl. VAT
13
Rear Brake lever push
851049
£14,92 Unit Price incl. VAT
14
Gear selector fork clips
AP8201301
£6,13 Unit Price incl. VAT
15
Hose clamp 155x2
AP8102386
£0,18 Unit Price incl. VAT
16
Fork
AP8101968
£16,72 Unit Price incl. VAT
17
Hex socket screw M6x12
AP8150537
£1,27 Unit Price incl. VAT
18
O-ring OR112
AP8120178
£4,69 Unit Price incl. VAT
19
Low self-locking nut
AP8150430
£1,27 Unit Price incl. VAT

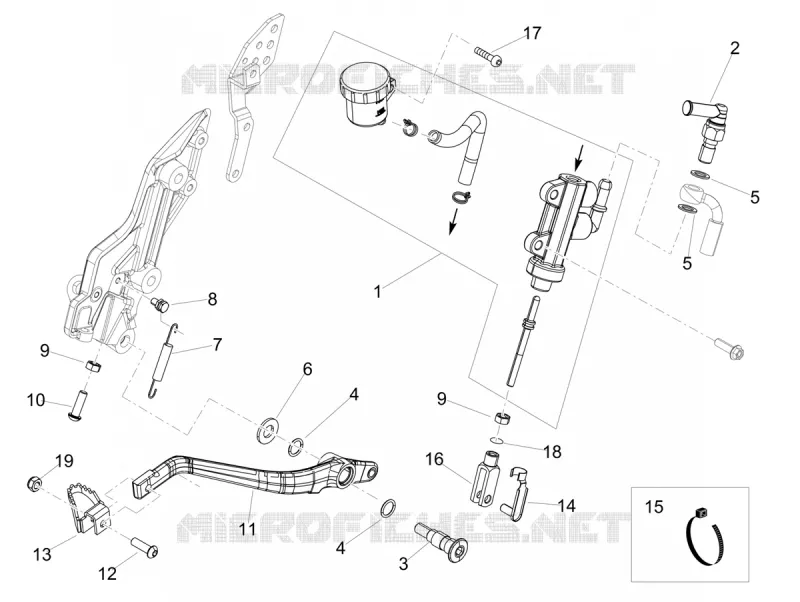

Find the detailed REAR BRAKE MASTER CYLINDER APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
