1
Engine displacement
900
2
Model
DORSODURO
3
Year
2018
4
Trim
Dorsoduro 900 Euro 4 ABS
5
Parts Catalog
CYLINDER HEAD - VALVES
6
Parts Diagram
Parts Catalog
CYLINDER HEAD COVER
by
PAD
CYLINDER HEAD - VALVES
1
1
2
2
3
3
4
4
4
5
5
5
6
6
6
7
7
7
8
8
8
8
9
9
10
11
11
12
13
13
14
15
15
16
16
16
17
17
18
18
18
18
18
18
19
20
21
22
22
23
24
25
1
LH head assy with valve
1A008221
Not Available
2
Intake valve
846923
£97,90 Unit Price incl. VAT
3
Exhaust valve
873459
£163,20 Unit Price incl. VAT
4
Ext. valve spring
873005
£18,47 Unit Price incl. VAT
5
Int. valve spring
873006
£9,38 Unit Price incl. VAT
6
Upper cap
1A002802
£9,53 Unit Price incl. VAT
7
Lower cap
1A002803
£6,41 Unit Price incl. VAT
8
Stud bolt
1A003632R
£2,35 Unit Price incl. VAT
9
Stud bolt
872807
£5,36 Unit Price incl. VAT
10
Water hose union
1A008494
£13,58 Unit Price incl. VAT
11
Screw w/ flange
855799
£5,14 Unit Price incl. VAT
12
Raccord
1A011266
£7,85 Unit Price incl. VAT
13
Gasket
878705
£3,91 Unit Price incl. VAT
14
Flanged nut M8x1,25
874557
£2,48 Unit Price incl. VAT
15
Flanged nut
874558
£2,40 Unit Price incl. VAT
16
Valve gasket ring
436438
£11,03 Unit Price incl. VAT
17
Flanged hexagon screw
874556
£0,47 Unit Price incl. VAT
18
Nut M10x1,25
825694
Not Available
19
Temperature gauge
640485
Not Available
20
M6x12 button socket head cap screw
1A002952
£0,32 Unit Price incl. VAT
21
Plug M12x1,5
411311
Not Available
22
Screw w/ flange
872424
£2,39 Unit Price incl. VAT
23
Plug M10
1A009653
£1,98 Unit Price incl. VAT
24
Torx convex big end screw M5x16
1A003051
£0,32 Unit Price incl. VAT
25
Washer
847239
£1,94 Unit Price incl. VAT

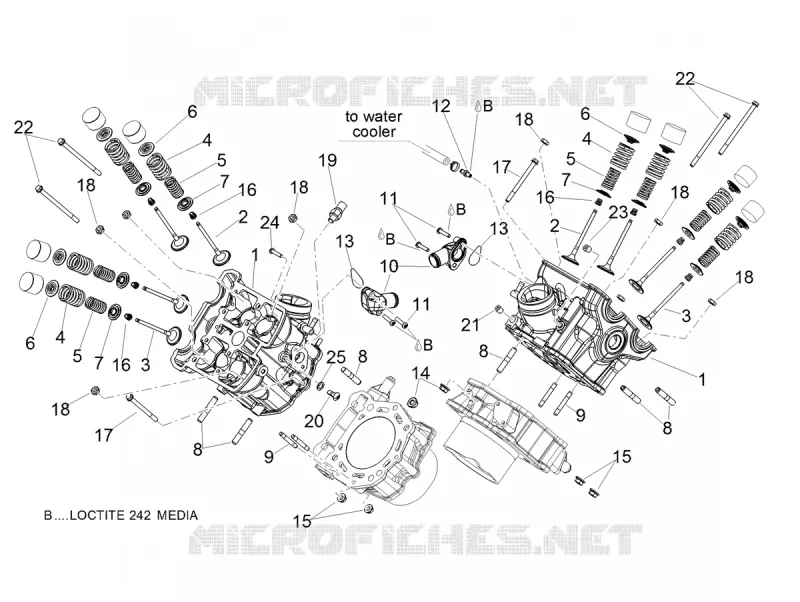

Find the detailed CYLINDER HEAD - VALVES APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
