1
Engine displacement
250
2
Model
LEONARDO
3
Year
2001
4
Trim
Leonardo (engine Yamaha)
5
Parts Catalog

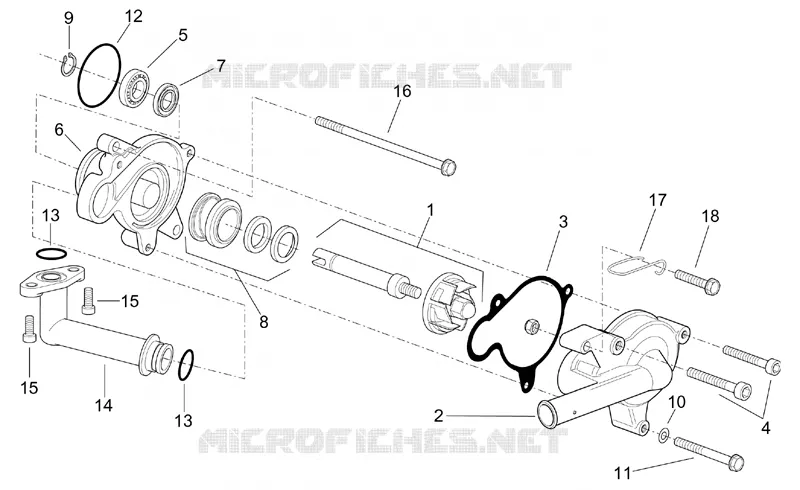

Water pump
6
Parts Diagram
Parts Catalog
Variator
by
Oil pump
Water pump
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
15
16
17
18
1
Water pump impeller cpl.
AP8122515
Not Available
2
Water pump cover
AP8122467
Not Available
3
Gasket
AP8122495
Not Available
4
Hex socket screw
AP8122411
Not Available
5
Bearing
AP8125822
Not Available
6
Water pump casing
AP8122512
Not Available
7
Oil seal
AP8122539
Not Available
8
Mechanical gasket
AP8122605
Not Available
9
Snap ring
AP8122437
Not Available
10
Gasket
AP8122487
Not Available
11
Hex socket screw M6x35
AP8152136
£1,27 Unit Price incl. VAT
12
O-ring
AP8144273
Not Available
13
O-ring
AP8144270
Not Available
14
Joint
AP8122518
Not Available
15
Hex socket screw
AP8122410
Not Available
16
Screw w/ flange
AP8122413
Not Available
17
Cable-guide
AP8201417
£26,51 Unit Price incl. VAT
18
Screw w/ flange M6x35
AP8152282
£1,27 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
