Engine displacement
500
2
Model
ATLANTIC
3
Year
2004
4
Trim
Atlantic
5
Parts Catalog
Water cooler
6
Parts Diagram
Parts Catalog
RH controls
by
Expansion tank
Water cooler
1
2
3
4
5
6
7
7
8
9
10
11
12
13
1
Water cooler
AP8104266
£117,68 Unit Price incl. VAT
2
Cooler-thermostat pipe
AP8144374
£145,94 Unit Price incl. VAT
3
Cooler-thermostat pipe
AP8144609
£100,99 Unit Price incl. VAT
3
Water cooler-head tube
AP8144379
Not Available
4
Fan, cpl.
AP8127021
Not Available
5
Water cooler support
AP8134713
Not Available
6
Silent-block *
AP8120275
£2,83 Unit Price incl. VAT
7
Rubber spacer
AP8120594
£3,13 Unit Price incl. VAT
8
Water cooler bush
AP8121922
Not Available
9
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
10
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
11
Hose clamp D16-24x8*
AP8101573
£2,95 Unit Price incl. VAT
12
Hose clamp
AP8104097
£3,42 Unit Price incl. VAT
13
Fuel pipe 5,5x10
AP8220325
Not Available

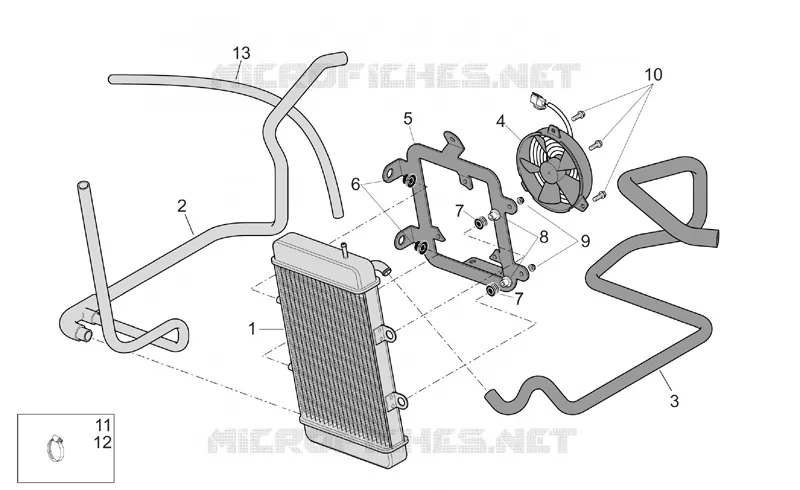

Find the detailed Water cooler APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
