Engine displacement
500
2
Model
ATLANTIC
3
Year
2004
4
Trim
Atlantic
5
Parts Catalog
Kaifa front fork - Hubs, sleeves
6
Parts Diagram
Parts Catalog
Marzocchi front fork - Hubs, sleeves
by
Rear shock absorber
Kaifa front fork - Hubs, sleeves
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
19
20
21
22
23
24
24
25
25
1
Bush ring
AP8163424
Not Available
2
Return spring
AP8163422
Not Available
3
screw M10x30
AP8163285
£4,09 Unit Price incl. VAT
4
Seal washer
AP8163414
Not Available
5
Stop ring D.37,5x1,2
AP8163433
Not Available
6
Plug
AP8163432
Not Available
7
Spring
AP8163430
Not Available
8
Shock absorber
AP8163423
Not Available
9
Hex socket screw M6x20
AP8223054
£2,36 Unit Price incl. VAT
10
Stroke limit stop
AP8163289
£15,34 Unit Price incl. VAT
11
Sleeve cpl.
AP8163420
£363,59 Unit Price incl. VAT
12
Bushing
AP8163421
Not Available
13
Dust cover
AP8163429
£7,99 Unit Price incl. VAT
14
Stop ring
AP8163428
Not Available
15
Gasket ring
AP8163427
Not Available
16
Cup
AP8163426
Not Available
17
Upper spring guide bush
AP8163425
Not Available
18
RH sleeve
AP8163415
Not Available
19
LH sleeve
AP8163416
Not Available
20
RH front mudguard supp.
AP8134819
Not Available
21
LH front mudguard supp.
AP8134800
Not Available
22
LH front mudguard supp.
AP8121532
Not Available
23
RH front mudguard supp.
AP8121564
Not Available
24
Bushing
AP8163419
£17,95 Unit Price incl. VAT
25
O-ring
AP8163431
Not Available

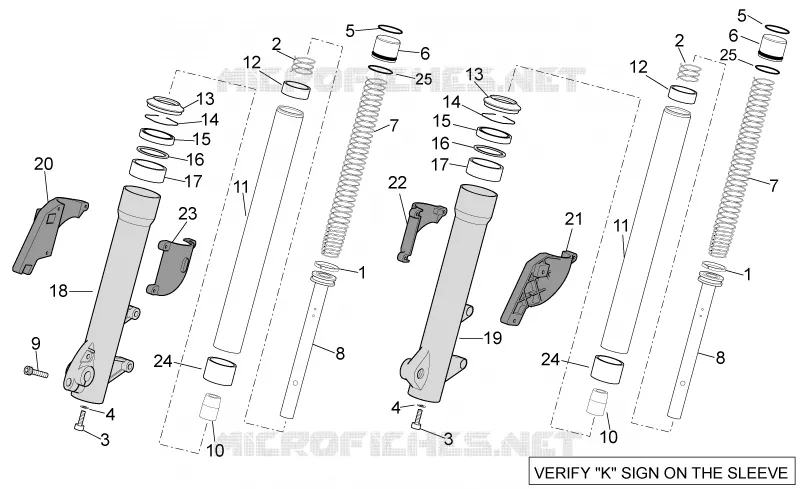

Find the detailed Kaifa front fork - Hubs, sleeves APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
