Engine displacement
500
2
Model
ATLANTIC
3
Year
2002
4
Trim
Atlantic
5
Parts Catalog
Front body I
6
Parts Diagram
Parts Catalog
Rear shock absorber
by
Front body II
Front body I
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
RH side panel, grey
AP8168366
Not Available
1
RH side panel, cyan
AP8158820
Not Available
1
RH side panel, blue
AP8178680
Not Available
1
RH side panel, red
AP8158808
Not Available
1
RH side panel, grey
AP8178692
Not Available
1
RH side panel, red
AP8168349
Not Available
1
RH side panel, grey
AP8149450
Not Available
1
RH side panel, blue
AP8158796
Not Available
2
LH side panel, blue
AP8158797
Not Available
2
LH side panel, grey
AP8149451
Not Available
2
LH side panel, cyan
AP8158821
Not Available
2
LH side panel, red
AP8168350
Not Available
2
LH side panel, red
AP8158809
Not Available
2
LH side panel, grey
AP8168367
Not Available
2
LH side panel, grey
AP8178693
Not Available
2
LH side panel, blue
AP8178681
Not Available
3
RH front finish
AP8149452
Not Available
4
LH front finish
AP8149453
£74,82 Unit Price incl. VAT
5
Front fairing, black
AP8149432
£272,64 Unit Price incl. VAT
5
Front fairing, black
AP8178678
Not Available
6
Front shield lockup, red
AP8158807
Not Available
6
Front shield lockup, grey
AP8168365
£53,23 Unit Price incl. VAT
6
Front shield lockup, cyan
AP8158819
Not Available
6
Front shield lockup, grey
AP8149429
Not Available
6
Front shield lockup, blue
AP8158795
Not Available
6
Front shield lockup, grey
AP8178679
Not Available
6
Front shield lockup, red
AP8168348
Not Available
7
Dashboard lockup
AP8149431
£36,08 Unit Price incl. VAT
8
Dashboard panel, black
AP8149461
£55,19 Unit Price incl. VAT
9
Front shield support
AP8146422
£77,44 Unit Price incl. VAT
10
Windscreen
AP8149458
Not Available
10
Windscreen
AP8158986
Not Available
11
Gasket
AP8144538
Not Available
12
Front fairing gasket
AP8144281
£22,16 Unit Price incl. VAT
13
Hex socket screw M4x16
AP8150493
£1,88 Unit Price incl. VAT
14
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
15
Clip M4
AP8102381
£4,02 Unit Price incl. VAT
16
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
17
Clip M6
AP8102376
Not Available
18
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT
19
Rubber w/ insert
AP8120531
£6,84 Unit Price incl. VAT

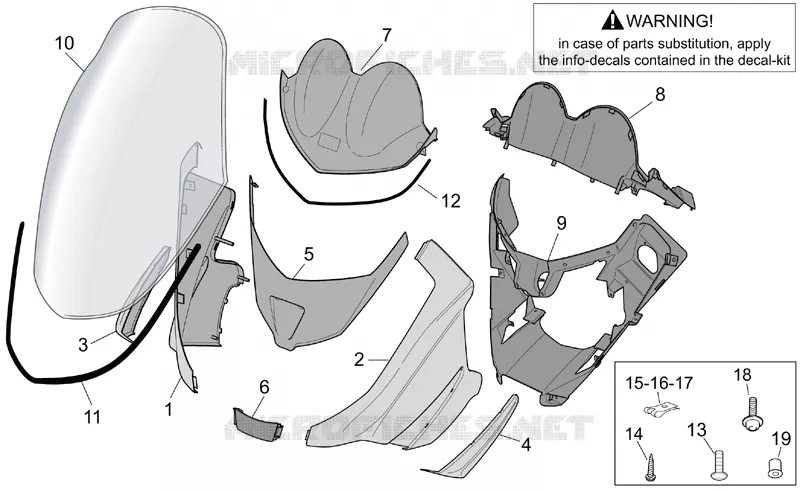

Find the detailed Front body I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
