Engine displacement
500
2
Model
ATLANTIC
3
Year
2002
4
Trim
Atlantic
5
Parts Catalog
Ignition unit
6
Parts Diagram
Parts Catalog
Starter motor
by
Throttle body
Ignition unit
1
2
2
2
3
4
5
5
5
6
7
7
8
9
10
11
12
13
14
1
Starter clutch assy.
AP8560036
Not Available
2
Break washer
AP8550487
Not Available
3
Rotor
AP8560102
Not Available
4
Stator cpl.
AP8560100
Not Available
5
Hex socket screw M6x25
AP8560037
Not Available
6
Nut M14x1,5
AP8560063
Not Available
7
screw M6x30
AP8560011
Not Available
8
Chain ring
AP8560058
Not Available
9
Plain washer
AP8560043
Not Available
10
plate
AP8560083
Not Available
11
screw
AP8550546
Not Available
12
Transmission key
AP8560006
Not Available
13
screw
AP8560009
Not Available
14
plate
AP8560065
Not Available

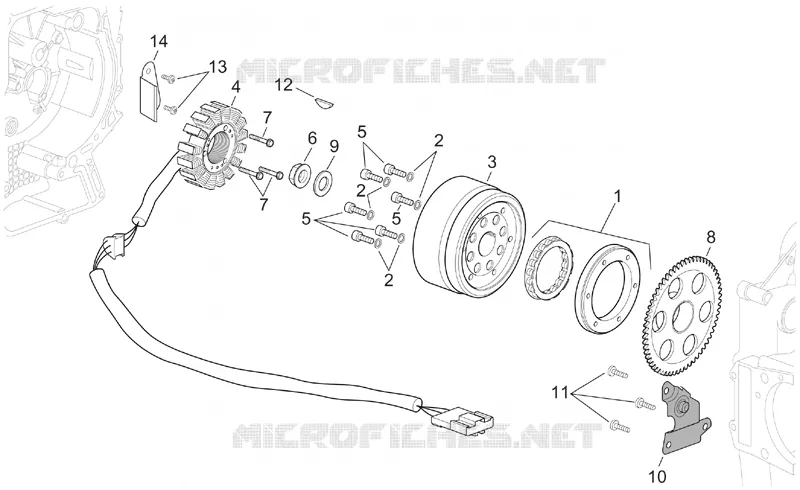

Find the detailed Ignition unit APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
