1
Engine displacement
150
2
Model
LEONARDO
3
Year
1999
4
Trim
Leonardo
5
Parts Catalog
Engine
6
Parts Diagram
Parts Catalog
Rear body - Plate holder
by
Handlebar

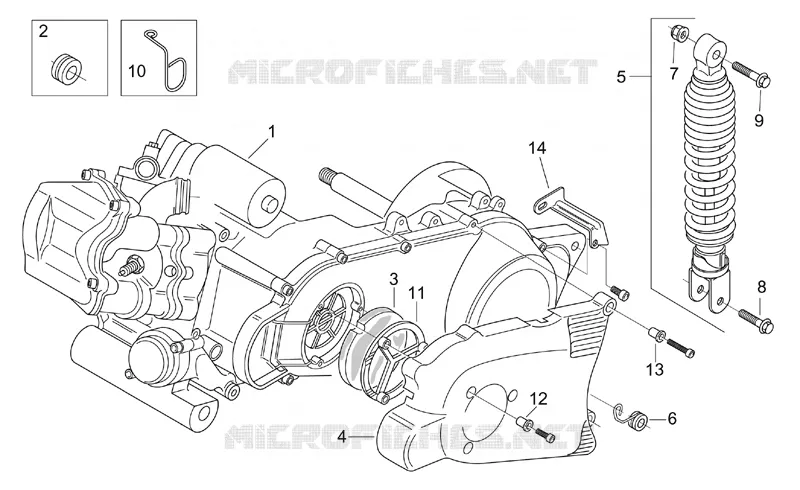

Engine
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Engine, complete 120
AP8106560
Not Available
1
Engine, complete 120
AP8106847
Not Available
1
Complete engine, water cooled
AP8106848
Not Available
1
Complete engine, water cooled
AP8106604
Not Available
1
Engine, complete 120
AP8106599
Not Available
1
Complete engine, water cooled
AP8106561
Not Available
2
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
3
Variator cooling filter
AP8102522
£6,64 Unit Price incl. VAT
4
Variator air intake, black
AP8149603
Not Available
4
Variator air intake, s.grey
AP8149067
Not Available
5
Shock absorber Showa
AP8123796
Not Available
5
Shock absorber Paioli
AP8123877
£281,05 Unit Price incl. VAT
6
Helmet holder hook
AP8221206
£30,73 Unit Price incl. VAT
7
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
8
Screw w/ flange
AP8152289
£1,27 Unit Price incl. VAT
9
Screw w/ flange M8x40
AP8152290
£2,63 Unit Price incl. VAT
10
Cable-guide
AP8221172
£12,64 Unit Price incl. VAT
11
Water cooler filter support
AP8138938
Not Available
12
T bush
AP8121266
Not Available
13
T bush *
AP8121725
£1,88 Unit Price incl. VAT
14
Rear black mudguard support
AP8134362
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
