1
Engine displacement
150
2
Model
LEONARDO
3
Year
1999
4
Trim
Leonardo
5
Parts Catalog
Cylinder head
6
Parts Diagram
Parts Catalog
Front body - Shield
by
Pulley assy., driven

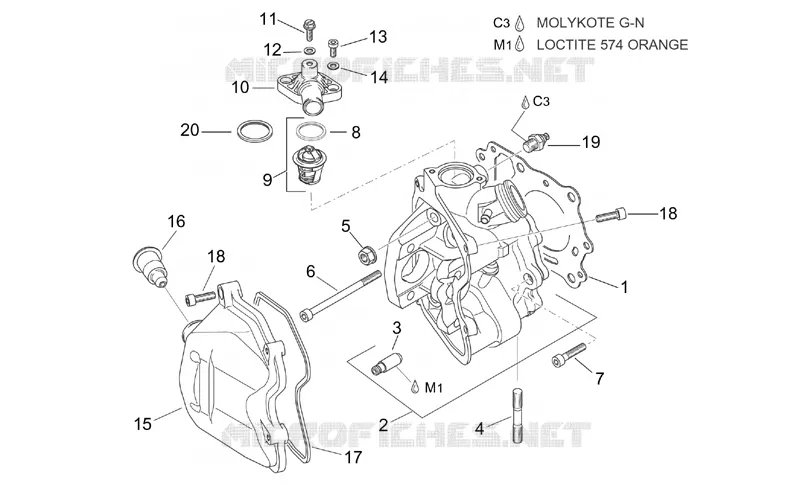

Cylinder head
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
1
Gasket
AP0650172
£46,94 Unit Price incl. VAT
1
Gasket
AP0650170
£32,18 Unit Price incl. VAT
2
Cylinder head assy.
AP0613110
Not Available
3
Valve guide
AP0253811
Not Available
4
Stud bolt
AP0240366
Not Available
5
Nut M8
AP0842616
Not Available
6
Hex socket screw M6x90
AP0241481
Not Available
7
Hex socket screw M6x30
AP0840880
£5,96 Unit Price incl. VAT
8
Thermostat gasket
AP0650300
Not Available
9
Thermostat 75°
AP0222490
Not Available
10
Thermostat cover
AP0222470
Not Available
11
screw
AP0941950
Not Available
12
Gasket 5,5/11/1
AP0650250
Not Available
13
Hex socket screw
AP0241841
Not Available
14
Washer D14
AP0927571
£1,88 Unit Price incl. VAT
15
Valves cover
AP0211521
Not Available
16
Oil separator
AP0256500
Not Available
17
Valve cover gasket
AP0650230
£31,99 Unit Price incl. VAT
18
Hex socket screw M6x20
AP0241930
Not Available
19
Temperature gauge
AP0265450
Not Available
20
Spacer 20,5x30
AP0927835
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
