Parts Catalog

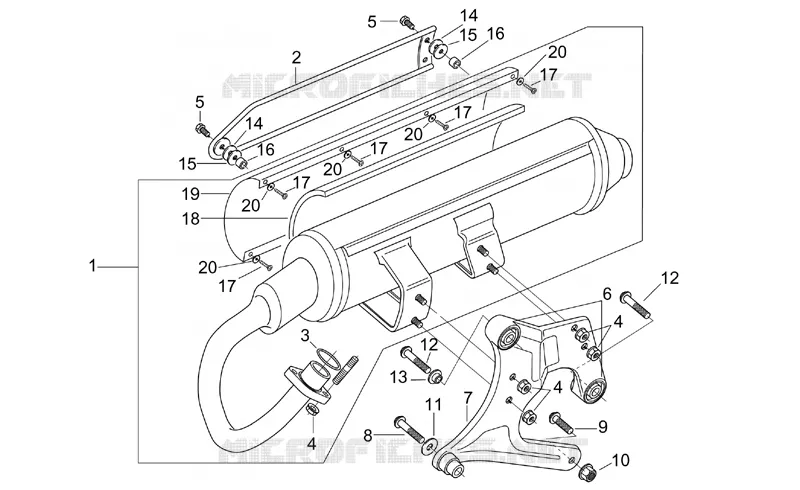

Exhaust unit
6
Parts Diagram
Parts Catalog
Front wheel
by
Primary transm.
Exhaust unit
1
2
3
4
4
4
5
5
6
6
7
8
9
10
11
12
12
13
14
14
15
15
16
17
17
17
17
17
18
19
20
20
20
20
20
1
Silencer
AP8119433
Not Available
1
Silencer
AP8119442
Not Available
2
Exhaust pipe prot., chr.
AP8119424
£67,46 Unit Price incl. VAT
3
Exhaust pipe gasket
AP8119355
Not Available
4
Nut M8
AP8150334
Not Available
5
Screw w/ flange M6x12
AP8152342
£0,85 Unit Price incl. VAT
6
Silent-block
AP8220346
£35,15 Unit Price incl. VAT
7
Exaust pipe support
AP8135680
Not Available
8
Screw w/ flange
AP8152291
£1,94 Unit Price incl. VAT
9
Screw w/ flange M8x30
AP8152288
£2,20 Unit Price incl. VAT
10
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
11
Washer
AP8150018
£1,88 Unit Price incl. VAT
12
Screw w/ flange M8x50
AP8152292
£1,94 Unit Price incl. VAT
13
T bush *
AP8120508
£3,83 Unit Price incl. VAT
14
Rubber spacer
AP8144065
£2,44 Unit Price incl. VAT
15
Heat shield washer
AP8144064
£0,76 Unit Price incl. VAT
16
Spacer
AP8120253
£1,66 Unit Price incl. VAT
17
Screw
AP8119490
Not Available
18
Acoustic insulation panel
AP8117144
Not Available
19
Ext.exhaust pipe protection
AP8119489
Not Available
20
Stainless washer 4,3x8
AP8119518
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
