1
Engine displacement
150
2
Model
LEONARDO
3
Year
1999
4
Trim
Leonardo
5
Parts Catalog

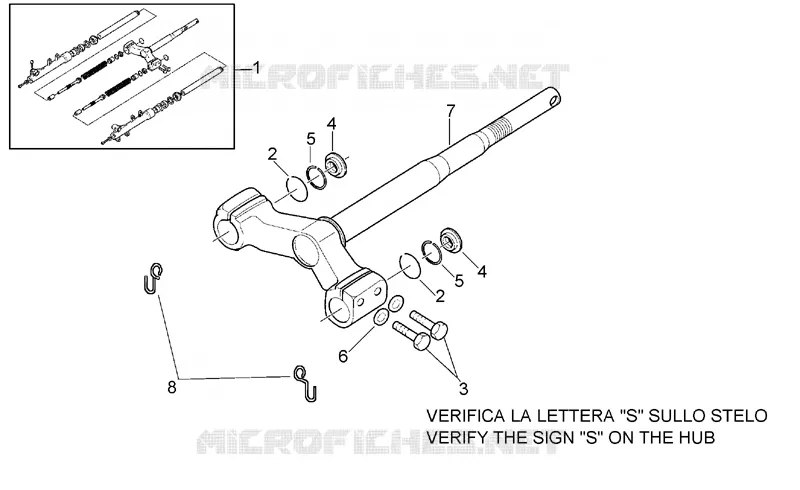

Front fork - Stem base
6
Parts Diagram
Parts Catalog
Tank
by
Front fork - Sleeves
Front fork - Stem base
1
2
2
3
4
4
5
5
6
7
8
1
Front fork
AP8123735
Not Available
2
O-ring
AP8123695
£7,28 Unit Price incl. VAT
2
Stop ring
AP8123756
£1,16 Unit Price incl. VAT
3
Special screw M8x35
AP8123575
Not Available
3
screw M8x30
AP8123757
Not Available
4
Plug
AP8123759
£5,94 Unit Price incl. VAT
4
Plug
AP8123696
Not Available
5
Stop ring
AP8123760
Not Available
5
Circlip
AP8203950
£2,53 Unit Price incl. VAT
6
Washer
AP8123758
Not Available
7
Stem base
AP8123755
Not Available
7
Stem base
AP8123694
Not Available
8
Cable-guide
AP8144055
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
