Engine displacement
50
2
Model
RX
3
Year
2003
4
Trim
RX Racing
5
Parts Catalog
Swing arm
6
Parts Diagram
Parts Catalog
Front fork II
by
Rear shock absorber
Swing arm
1
2
3
3
4
4
5
5
6
6
7
8
9
10
11
12
13
14
14
15
16
16
17
17
18
18
18
18
19
19
20
20
21
1
Swing arm, grey
AP8235160
Not Available
2
Rear swing arm pin+nut
AP8225070
Not Available
3
Bush
AP8220196
Not Available
4
O-ring
AP8220198
£1,01 Unit Price incl. VAT
5
Bush
AP8220197
Not Available
6
Washer D15x22x1
AP8152103
£1,88 Unit Price incl. VAT
7
Nut M14x1,5
AP8152087
Not Available
8
Hex screw M8x60
AP8150154
£1,88 Unit Price incl. VAT
9
Nut M8
AP8150027
£1,27 Unit Price incl. VAT
10
Spacer
AP8221103
Not Available
11
Chain guide plate
AP8220259
Not Available
12
Cup for shoe
AP8234020
£2,17 Unit Price incl. VAT
13
Chain plate
AP8230440
£7,97 Unit Price incl. VAT
14
T bush *
AP8121035
£3,17 Unit Price incl. VAT
15
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
16
Chain tensioner roller
AP8101375
Not Available
17
Bush
AP8121857
£12,62 Unit Price incl. VAT
18
Washer
AP8150018
£1,88 Unit Price incl. VAT
19
Screw w/ flange M8x50
AP8152292
£1,94 Unit Price incl. VAT
20
Low nut M8
AP8150431
£1,94 Unit Price incl. VAT
21
Cable-guide
AP8134186
£0,86 Unit Price incl. VAT

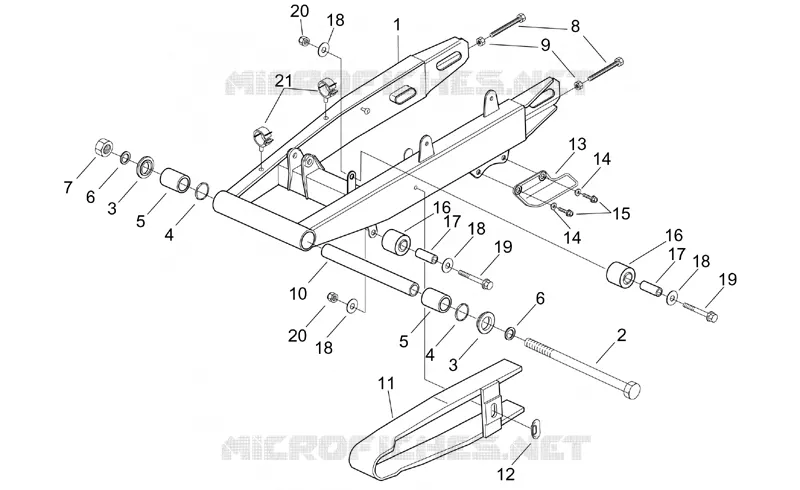

Find the detailed Swing arm APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
