Engine displacement
50
2
Model
RX
3
Year
2003
4
Trim
RX Racing
5
Parts Catalog
Front body II
6
Parts Diagram
Parts Catalog
Front body I
by
Fuel tank
Front body II
1
2
3
4
5
6
7
8
8
1
RH air duct, black
AP8268070
Not Available
2
LH air duct, black
AP8268071
Not Available
3
Water cooler shield, black
AP8230659
£19,28 Unit Price incl. VAT
4
Headlight support
AP8268069
Not Available
5
Elastic
AP8120177
£6,95 Unit Price incl. VAT
6
Washer 6,6x18*
AP8150179
£1,27 Unit Price incl. VAT
7
Hex socket screw
AP8152108
£1,88 Unit Price incl. VAT
8
O-ring 159
AP8144063
£2,03 Unit Price incl. VAT

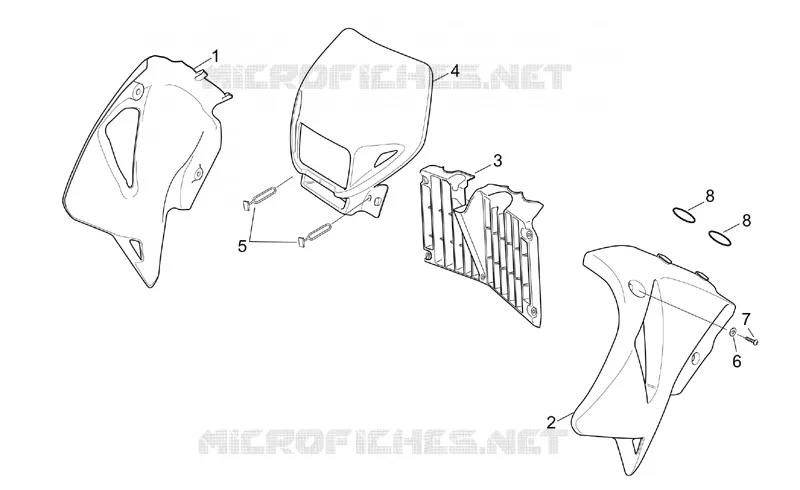

Find the detailed Front body II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
