Parts Catalog
Front fork I
6
Parts Diagram
Parts Catalog
Central stand
by
Front fork II
Front fork I
1
2
3
4
5
6
7
7
8
9
10
11
12
12
12
13
13
14
15
1
Plug
AP8203251
£28,73 Unit Price incl. VAT
2
Washer
AP8123843
Not Available
3
Dust cover
AP8120211
£14,44 Unit Price incl. VAT
4
Spacer
AP8101272
£12,08 Unit Price incl. VAT
5
Roller bearing
AP8110024
£62,09 Unit Price incl. VAT
6
Gasket ring
AP8104597
£11,65 Unit Price incl. VAT
7
Hex screw
AP8152090
Not Available
8
Washer D7
AP8203427
Not Available
9
Fork upper plate
AP8203424
£141,91 Unit Price incl. VAT
10
Fork lower ring nut
AP8203588
£29,14 Unit Price incl. VAT
11
Stem base
AP8163384
Not Available
12
Screw M6x30
AP8163385
Not Available
13
screw M8x35
AP8203590
£3,90 Unit Price incl. VAT
14
U-bolt
AP8203425
£26,14 Unit Price incl. VAT
15
Front fork
AP8223065
Not Available

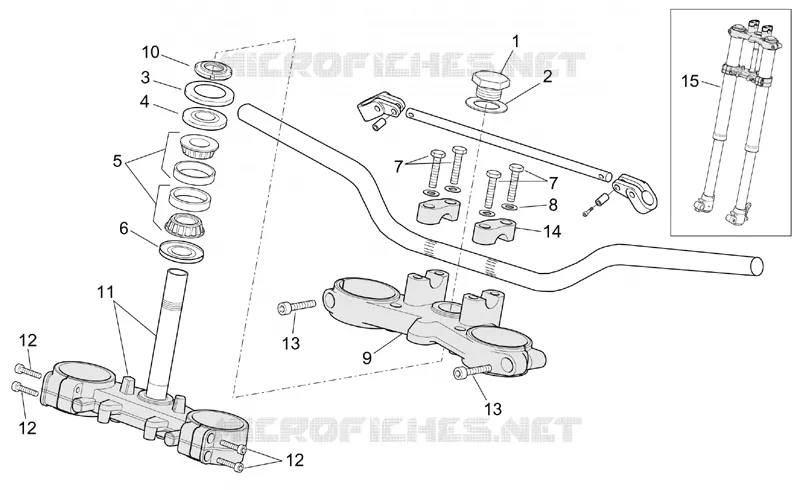

Find the detailed Front fork I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
