Engine displacement
50
2
Model
RX
3
Year
2003
4
Trim
RX Racing
5
Parts Catalog
Secondary air
6
Parts Diagram
Parts Catalog
Air box
by
Oil tank
Secondary air
1
2
3
4
4
4
4
5
1
Valve SAS
AP8104745
Not Available
2
Intake pipe SAS
AP8220650
Not Available
3
Air pipe SAS
AP8220651
Not Available
4
Hose clip D.15,5x6,6
AP8101586
£3,97 Unit Price incl. VAT
5
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT

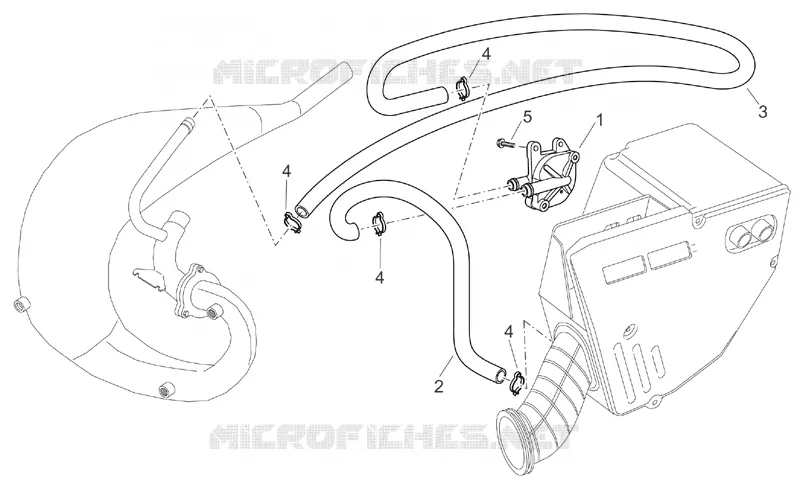

Find the detailed Secondary air APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
