Engine displacement
50
2
Model
RX
3
Year
2003
4
Trim
RX Racing
5
Parts Catalog
Right crankcase
6
Parts Diagram
Parts Catalog
Left crankcase
by
Oil pump
Right crankcase
1
2
3
4
5
6
7
8
9
1
Trans.case w.o.elec.start-pair
AP8206987
Not Available
2
Oil drain hex screw M8x10
AP8502586
Not Available
3
Oil plug seal D8x14
AP8502759
Not Available
4
Hex stop scrw M12x1,25
AP8502589
Not Available
5
Gasket D12x17x1
AP8502757
£9,98 Unit Price incl. VAT
6
Pin D8,51x7,6
AP8509209
Not Available
7
Tachometer drive spindle
AP8206299
Not Available
8
Tachometer driving gear
AP8206252
Not Available
9
Blue steel washer D8,4x16
AP8206277
Not Available

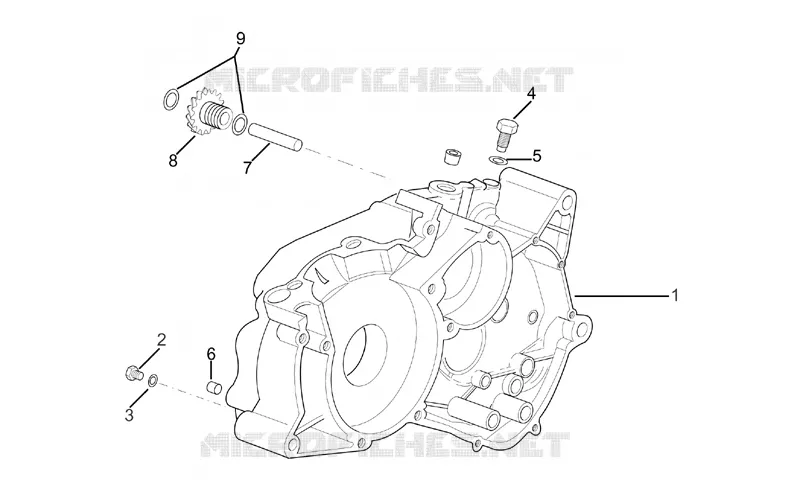

Find the detailed Right crankcase APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
