Parts Catalog
Dashboard
6
Parts Diagram
Parts Catalog
Rear body
by
Controls I
Dashboard
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Dashboard complete
AP8224582
Not Available
2
Shell
AP8224575
£62,94 Unit Price incl. VAT
3
Light guide
AP8224613
Not Available
4
Dashboard
AP8224576
Not Available
5
Connector
AP8104744
Not Available
6
Dashboard cable
AP8224583
Not Available
7
Maintenance
AP8234227
Not Available
8
Rubber spacer
AP8120405
£5,52 Unit Price incl. VAT
9
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
10
Washer 4,3x16*
AP8150159
£1,88 Unit Price incl. VAT
11
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
12
Hex socket screw M6x30
AP8150220
£0,89 Unit Price incl. VAT
13
Black hose 98x2*
AP8120422
£1,49 Unit Price incl. VAT

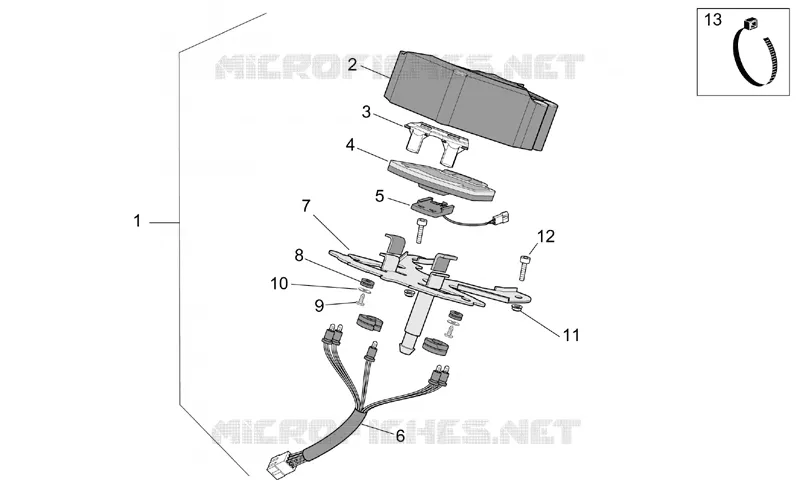

Find the detailed Dashboard APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
