1
Engine displacement
50
2
Model
RX
3
Year
2003
4
Trim
RX Racing
5
Parts Catalog
Front brake caliper
6
Parts Diagram
Parts Catalog
Front wheel
by
Rear wheel
Front brake caliper
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Front brake hose
AP8213539
Not Available
2
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
3
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
4
Front brake caliper
AP8113460
Not Available
5
Hex socket screw M8x35
AP8150236
£1,27 Unit Price incl. VAT
6
Pads pair
AP8113478
Not Available
7
Air bleed valve
AP8213108
£28,56 Unit Price incl. VAT
8
Front brake caliper rev. kit
AP8113374
Not Available
9
Cable-guide
AP8120428
£26,03 Unit Price incl. VAT
10
Pins+spring
AP8104060
Not Available
11
Washer 8,5x15x0,8
AP8150376
£1,76 Unit Price incl. VAT
12
Washer 8,4x16x1,6
AP8150017
£1,88 Unit Price incl. VAT
13
Screw w/ flange M8x25
AP8152287
£2,63 Unit Price incl. VAT
14
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
15
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
16
Plate
AP8234231
Not Available
17
Magnetic sensor
AP8224573
Not Available

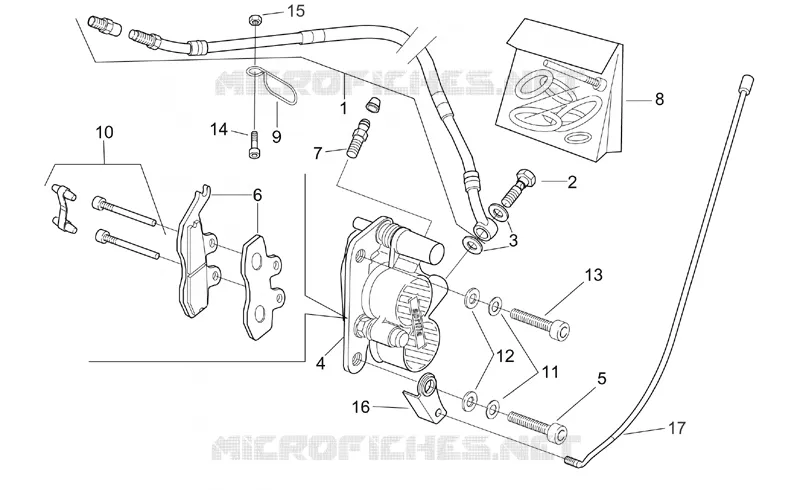

Find the detailed Front brake caliper APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
