Parts Catalog
Piston
6
Parts Diagram
Parts Catalog
Drive shaft
by
Cylinder head
Piston
1
2
3
4
5
6
7
8
9
9
10
11
1
Cylinder with piston
AP8206979
Not Available
2
Spring fixing plate
AP8508882
Not Available
3
Exhaust pipe fixing spring
AP8507839
Not Available
4
O-ring D25x2,6
AP8206976
Not Available
5
Stud bolt M7x115
AP8508553
Not Available
6
Oversize piston rings D40,6
AP8206953
Not Available
6
Oversize piston rings D40,8
AP8206954
Not Available
6
Piston ring set D40,3x1,2
AP8206952
Not Available
7
Spark plug BR9ES
AP8206915
£6,07 Unit Price incl. VAT
8
Piston pin D12x34,5
AP8502846
Not Available
9
Stop ring D12
AP8206019
Not Available
10
Piston assy D40,6
AP8206956
Not Available
10
Piston assy D40,8
AP8206957
Not Available
10
Piston assy D40,3
AP8206955
Not Available
11
Cylinder base gasket
AP8206292
Not Available

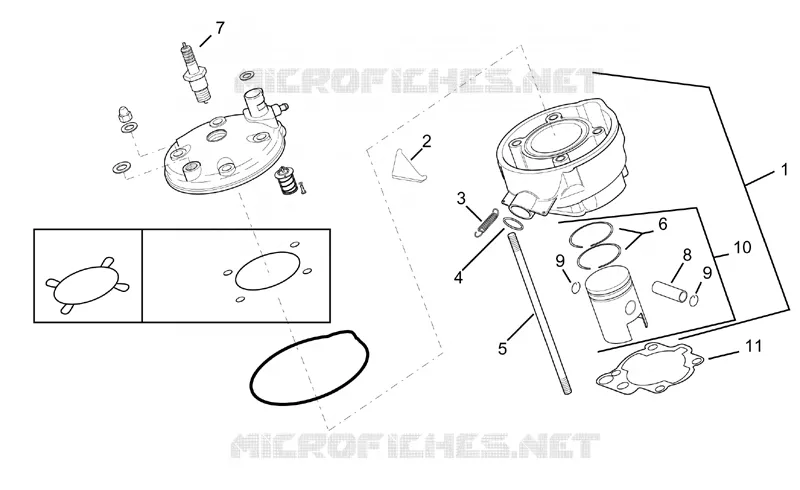

Find the detailed Piston APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
