Engine displacement
50
2
Model
SR
3
Year
2005
4
Trim
SR H2O NEW (Di-Tech)
5
Parts Catalog
Throttle body
6
Parts Diagram
Parts Catalog
Cylinder head
by
Injection unit
Throttle body
1
2
3
4
5
6
7
7
8
9
9
10
11
12
1
Throttle body cpl.
AP3ACA000132
Not Available
2
Fuel intake valve gasket
AP3AVA000063
Not Available
3
Reed valve assy
AP3AEA000002
£36,24 Unit Price incl. VAT
4
Intake manifold
AP3ABA000642
Not Available
5
Hose clamp
AP2FDN000201
£4,38 Unit Price incl. VAT
6
Hose clamp
AP3AAN000054
£3,47 Unit Price incl. VAT
7
Shear rivet
AP3AVN000086
Not Available
8
screw
AP4ADN000014
£2,99 Unit Price incl. VAT
9
Washer
AP4DFN000033
Not Available
10
Oil pipe
AP2HAN000224
Not Available
11
Hose clamp
AP2FBN000034
Not Available
12
Brass oil anti-return valve
AP2HAA000487
Not Available

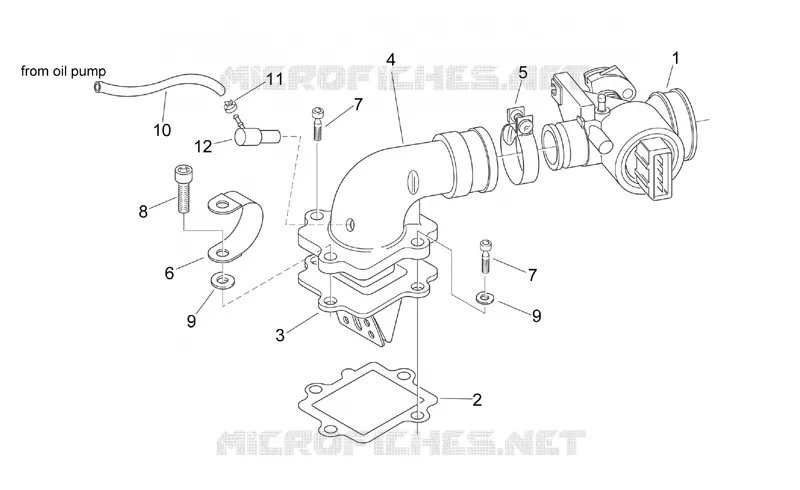

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
