Engine displacement
50
2
Model
SR
3
Year
2005
4
Trim
SR H2O NEW (Di-Tech)
5
Parts Catalog
Engine
6
Parts Diagram
Parts Catalog
Decal
by
Crank-case
Engine
1
2
3
4
5
6
7
8
9
9
10
11
12
1
Engine e.i.
AP8222818
Not Available
1
Engine e.i.
AP8222809
Not Available
1
Engine e.i.
AP8222814
Not Available
2
Variator air intake
AP8220562
£31,43 Unit Price incl. VAT
3
Screw w/ flange M10x35
AP8152318
£3,62 Unit Price incl. VAT
4
Shock absorber
AP8223101
Not Available
5
Pin M12
AP8221307
£16,42 Unit Price incl. VAT
6
Low self-locking nut M12*
AP8150432
£2,18 Unit Price incl. VAT
7
Washer 12,2x22x2
AP8152018
£9,28 Unit Price incl. VAT
8
Engine pivot pin bush
AP8221322
Not Available
9
Outside circlip D17
AP8206233
Not Available
10
Pump-cylinder hose
AP3LAA000010
Not Available
11
Hose clamp
AP2FDN000175
Not Available
12
Hose clamp
AP2FDN000176
Not Available

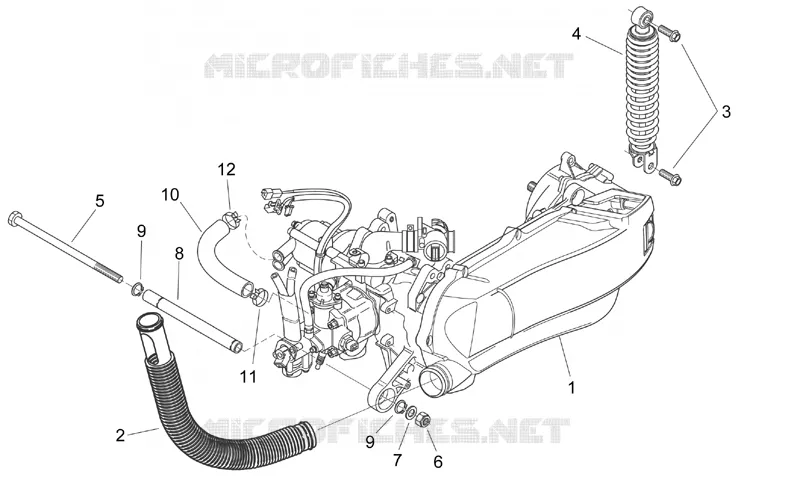

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
