1
Engine displacement
125
2
Model
SPORT-CITY
3
Year
2006
4
Trim
Sport City E3
5
Parts Catalog
Oil pump
6

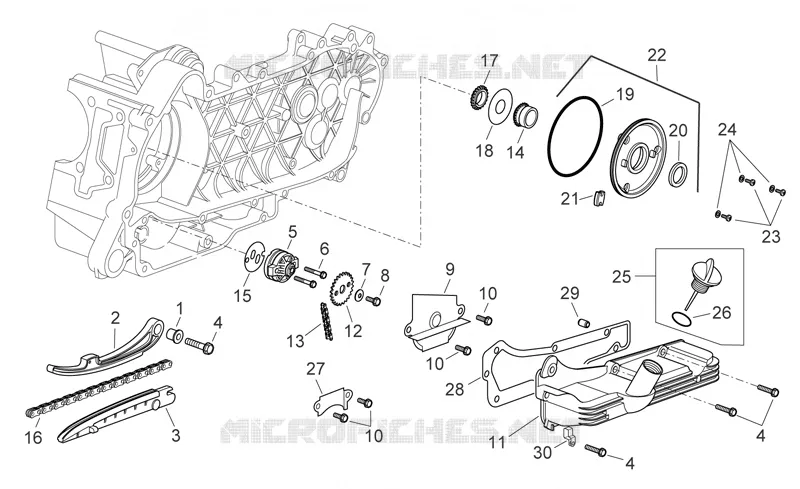

Parts Diagram
Parts Catalog
Rear body II
by
Dashboard
Oil pump
1
2
3
4
4
4
5
6
7
8
9
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
Spacer
AP8580090
Not Available
2
Chain tensioner rod
AP8580156
Not Available
2
Chain tensioner rod
AP8577030
Not Available
3
Chain tensioner sliding block
AP8580157
Not Available
3
Chain tensioner sliding block
AP8176325
Not Available
4
Screw w/ flange
AP8113789
Not Available
5
Oil pump assy.
AP8580102
Not Available
6
Screw w/ flange
AP8176294
Not Available
7
Belleville spring
AP8550439
Not Available
8
Screw w/ flange
AP8550556
Not Available
9
Oil bulhead
AP8580070
Not Available
10
Screw w/ flange
AP8551045
Not Available
11
Motor oil cup
AP8176255
Not Available
11
Motor oil cup
AP8553005
Not Available
12
Oil pump gear
AP8550380
Not Available
13
Oil pump chain
AP8580131
Not Available
14
Oil pump control pinion
AP8580072
Not Available
15
Gasket
AP8176293
Not Available
16
Camshaft chain
AP8577032
Not Available
16
Camshaft chain
AP8580130
Not Available
17
Timing system chain pinion cpl
AP8577033
Not Available
18
Oil seal washer
AP8580077
Not Available
19
O-ring
AP8580118
Not Available
20
Gasket ring
AP8580113
Not Available
21
Oil pump chain drift
AP8550522
Not Available
22
Timing system cover
847116
£59,46 Unit Price incl. VAT
23
Hex socket screw
AP8550155
Not Available
24
Washer
AP8580107
Not Available
25
Oil filler plug
AP8176332
Not Available
25
Oil filler plug
AP8580144
Not Available
26
Gasket
AP8550417
Not Available
27
Oil bulhead
AP8580083
Not Available
28
Gasket
AP8553006
Not Available
29
Locating dowel
AP8551015
Not Available
30
Hose clamp
AP8551051
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
