1
Engine displacement
125
2
Model
SPORT-CITY
3
Year
2006
4
Trim
Sport City E3
5
Parts Catalog

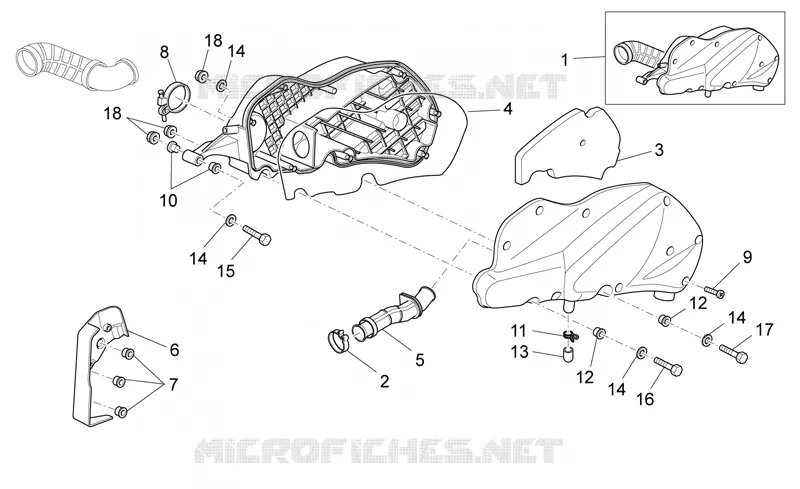

Air box
6
Parts Diagram
Parts Catalog
Frame
by
Clutch
Air box
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
14
14
14
15
16
17
18
18
1
Air box cpl.
AP8179355
Not Available
1
Air box cpl.
AP8179693
Not Available
1
Air box cpl.
AP8179449
Not Available
2
Hose clamp
AP8580181
Not Available
3
Air filter
AP8580172
Not Available
4
Gasket D3
AP8120615
£2,59 Unit Price incl. VAT
5
Intake hose
AP8144795
Not Available
5
Air intake hose
AP8580178
Not Available
6
Air box protection
672198
£13,84 Unit Price incl. VAT
7
Bush
AP8121032
£3,88 Unit Price incl. VAT
8
Hose clamp
AP8121621
Not Available
9
Self-tap screw 3x20
AP8580061
Not Available
10
Bushing
AP8580184
Not Available
11
Hose clamp
AP8580219
Not Available
12
Bushing
AP8580183
Not Available
13
Cap
AP8144701
Not Available
14
Washer 6,6x18x1,6*
AP8150015
£1,88 Unit Price incl. VAT
15
Hex socket screw M6x55
AP8150045
£4,78 Unit Price incl. VAT
16
Hex socket screw M6x45
AP8150403
£1,94 Unit Price incl. VAT
17
Hex socket screw M6x35
AP8150285
£1,94 Unit Price incl. VAT
18
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
