1
Engine displacement
125
2
Model
SPORT-CITY
3
Year
2006
4
Trim
Sport City E3
5
Parts Catalog

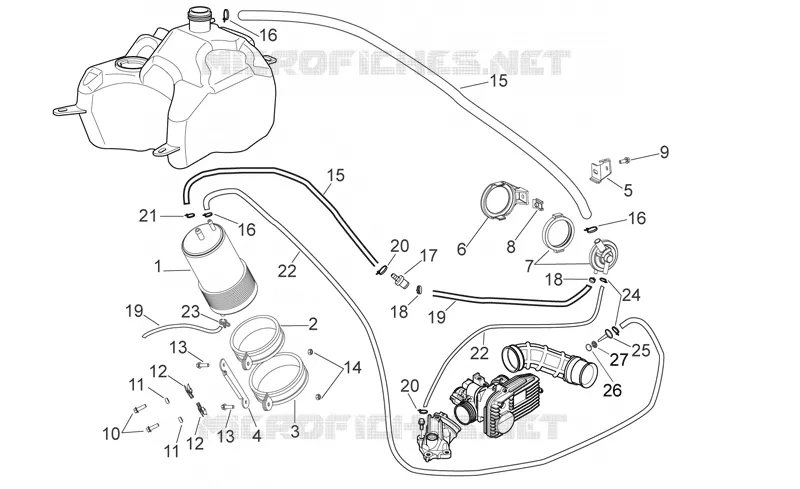

Fuel vapour recover system
6
Parts Diagram
Parts Catalog
Fuel tank II
by
Camshaft
Fuel vapour recover system
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
13
14
15
15
16
16
16
17
18
18
19
19
20
20
21
22
22
23
24
25
26
27
1
Carbon filter
AP8102678
£41,63 Unit Price incl. VAT
2
Hose clamp d.76
AP8102688
£65,77 Unit Price incl. VAT
3
Hose clamp d.80,5
AP8102719
£84,05 Unit Price incl. VAT
4
Bracket
852320
Not Available
5
Bracket
852319
Not Available
6
Valve support clamp
AP8134650
£10,01 Unit Price incl. VAT
7
"Purge" valve
AP8106776
£76,50 Unit Price incl. VAT
8
Clip M6
AP8102376
Not Available
9
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
10
Hex socket screw M5x12
AP8152267
£2,36 Unit Price incl. VAT
11
Washer 5,5x15x1,6
AP8150248
£0,98 Unit Price incl. VAT
12
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
13
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
14
Self-locking nut M5
AP8152306
Not Available
15
Fuel pipe 5,5x10
AP8120952
Not Available
16
Hose clamp D10,1
AP8101595
£3,97 Unit Price incl. VAT
17
Joint
AP8102873
£15,67 Unit Price incl. VAT
18
Hose clip D.15,5x6,6
AP8101586
£3,97 Unit Price incl. VAT
19
Fuel pipe 8x13
AP8120905
Not Available
20
Hose clamp D11,3
AP8102378
£4,01 Unit Price incl. VAT
21
Hose clamp D 11,9
AP8201358
£0,60 Unit Price incl. VAT
22
Breather pipe
AP8220598
£10,81 Unit Price incl. VAT
23
Hose clamp
AP8102520
£2,08 Unit Price incl. VAT
24
Hose clamp D8
AP8120179
£1,27 Unit Price incl. VAT
25
Joint
AP8144638
Not Available
26
Rubber spacer
AP8102504
£2,52 Unit Price incl. VAT
27
Washer for shafts D5
AP8150450
£2,20 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
