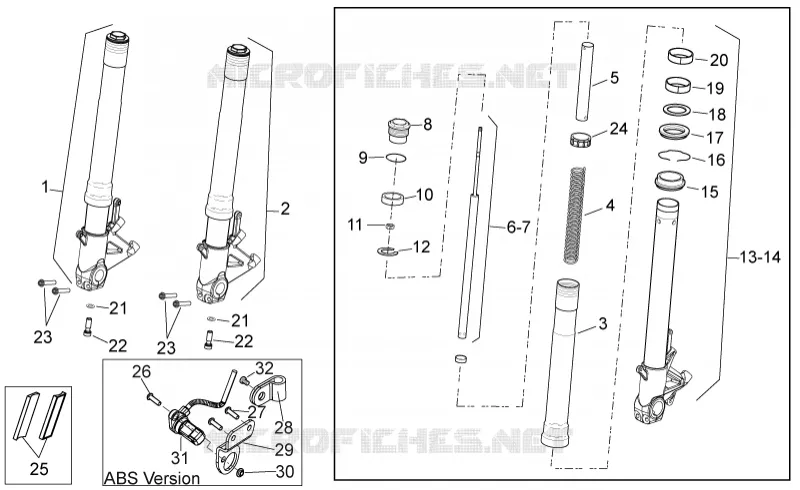

Front fork
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
22
23
23
24
25
26
27
28
29
30
31
32
1
RH hub cpl.
859982
Not Available
2
LH hub cpl.
859983
Not Available
3
Sleeve
856029
Not Available
4
Spring
856030
£62,60 Unit Price incl. VAT
5
Preload tube
856549
£36,97 Unit Price incl. VAT
6
RH plunger, complete
856245
£82,38 Unit Price incl. VAT
7
LH plunger, complete
856032
£82,38 Unit Price incl. VAT
8
Sleeve plug cpl.
856033
Not Available
9
O-ring
856034
Not Available
10
Rubber ring
856035
Not Available
11
Nut
856036
£1,58 Unit Price incl. VAT
12
Stop ring
856037
Not Available
13
Hub+RH fork leg
856038
Not Available
14
Hub+LH fork leg
856039
Not Available
15
Dust cover
856040
£24,58 Unit Price incl. VAT
16
Circlip
856041
Not Available
17
Oil seal
856042
£24,58 Unit Price incl. VAT
18
Ring
856043
£3,48 Unit Price incl. VAT
19
Spring guide bush
856044
Not Available
20
Bush
856045
Not Available
21
Special washer
856046
£1,84 Unit Price incl. VAT
22
screw M10x1,5
856047
£1,73 Unit Price incl. VAT
23
Screw w/ flange M8x40
AP8152290
£2,63 Unit Price incl. VAT
24
Spring centering
856317
£14,83 Unit Price incl. VAT
25
Reflector, amber
GU05781630
£18,60 Unit Price incl. VAT
26
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
27
Hex socket screw
AP8150298
£0,98 Unit Price incl. VAT
28
Fairlead
859777
£8,06 Unit Price incl. VAT
29
Front plate
856557
£12,37 Unit Price incl. VAT
30
Self-locking nut M5
AP8152306
Not Available
31
Sensor ABS
859792
Not Available
32
Screw M4x6
AP8201749
£1,00 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
