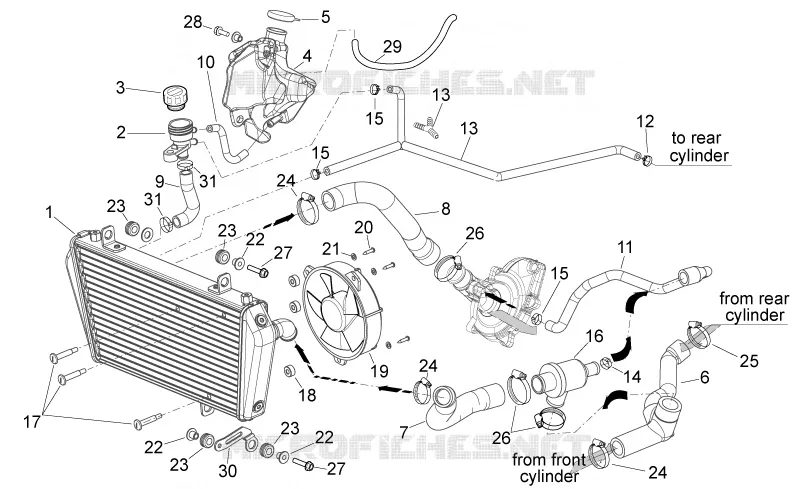

Cooling system
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
15
15
16
17
18
19
20
21
22
22
22
23
23
23
23
24
24
24
25
26
26
27
27
28
29
30
31
31
1
Water cooler
851596
Not Available
2
Filler cap
AP8144644
£13,60 Unit Price incl. VAT
3
Cover
AP8102615
£57,40 Unit Price incl. VAT
4
Expansion tank
851597
Not Available
5
Expansion tank plug
AP8104836
Not Available
6
Water pipe
851683
£70,22 Unit Price incl. VAT
7
Thermostat-cooler pipe
851598
£36,07 Unit Price incl. VAT
8
Cooler-pump pipe
851600
Not Available
9
Water rad.feed pipe
851599
£18,38 Unit Price incl. VAT
10
Breather pipe
851601
£24,44 Unit Price incl. VAT
11
Motor-pump valve tube
851602
£63,62 Unit Price incl. VAT
12
Hose clip, green D11x6,6x1
AP8120446
£3,25 Unit Price incl. VAT
13
Breather pipe
860328
£54,26 Unit Price incl. VAT
13
Black Y union
895280
Not Available
14
Hose clip D23,5x8*
AP8101743
£3,52 Unit Price incl. VAT
15
Hose clamp
CM001914
£1,57 Unit Price incl. VAT
16
Thermostat valve set 85°C
834232
£108,74 Unit Price incl. VAT
17
Pin
AP8121464
£4,82 Unit Price incl. VAT
18
Spacer
AP8161083
£4,68 Unit Price incl. VAT
19
Fan, cpl.
AP8124930
Not Available
20
Screw 4,2x22*
AP8150120
£1,21 Unit Price incl. VAT
21
Washer 5,3x10x1*
AP8150012
£3,02 Unit Price incl. VAT
22
T bush
AP8221023
£1,64 Unit Price incl. VAT
23
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
24
Hose clamp
CM001924
£5,17 Unit Price incl. VAT
25
Hose clip 290x8,9
AP8201409
£5,15 Unit Price incl. VAT
26
Hose clamp
AP8104097
£3,42 Unit Price incl. VAT
27
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
28
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
29
Fuel pipe 5,5x10
AP8120952
Not Available
30
Water cooler support
853458
£12,97 Unit Price incl. VAT
31
Hose clamp
CM001905
£1,62 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
