Engine displacement
1000
2
Model
RSV4
3
Year
2016
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog
Swing arm
6
Parts Diagram
Parts Catalog
Pad
by
Air box
Swing arm
1
2
3
4
5
6
7
8
9
9
10
11
12
13
13
14
14
15
15
16
17
18
19
20
21
22
23
24
24
25
25
26
27
28
28
29
1
Swing arm
2B001289
Not Available
2
Rear swing arm pin
858707
£220,78 Unit Price incl. VAT
3
Roller cage
AP8110078
£11,72 Unit Price incl. VAT
4
Ball bearing 61904-2RS1
890002
£46,70 Unit Price incl. VAT
5
Adjustment bush
858708
£73,96 Unit Price incl. VAT
6
Swing arm ring nut
648707
£14,14 Unit Price incl. VAT
7
Chain guide plate
858780
£21,80 Unit Price incl. VAT
8
Chain guard
858783
£13,85 Unit Price incl. VAT
9
O-ring 134
AP8144048
£1,27 Unit Price incl. VAT
10
Gasket ring
AP8144006
£13,28 Unit Price incl. VAT
11
Inside circlip d37
AP8121204
£1,27 Unit Price incl. VAT
12
Gasket ring
AP8144005
£13,28 Unit Price incl. VAT
13
Cup for shoe
AP8234020
£2,17 Unit Price incl. VAT
14
Chain tens.adjuster screw
2B001920
£4,74 Unit Price incl. VAT
15
Nut M8
AP8150334
Not Available
16
T bush *
AP8121075
£1,96 Unit Price incl. VAT
17
Low self-locking nut
AP8150430
£1,27 Unit Price incl. VAT
18
Rear int.sw.arm piv.bush
858936
£35,00 Unit Price incl. VAT
19
Wheel pin washer
AP8125687
£1,27 Unit Price incl. VAT
20
Rear wheel spindle nut
648708
Not Available
21
LH chain guide plate
AP8144443
£28,00 Unit Price incl. VAT
22
RH chain guide plate
AP8144444
£28,00 Unit Price incl. VAT
23
Chain guide plate
858781
£12,98 Unit Price incl. VAT
24
Screw w/ flange M5x12
AP8152302
Not Available
25
Hex socket screw M5x12
AP8152267
£2,36 Unit Price incl. VAT
26
Internal spacer
AP8121570
£52,81 Unit Price incl. VAT
27
Screw
AP8150503
£1,69 Unit Price incl. VAT
28
Maintenance
AP8148824
£17,62 Unit Price incl. VAT
29
Screw M6x40
AP8150468
£1,27 Unit Price incl. VAT

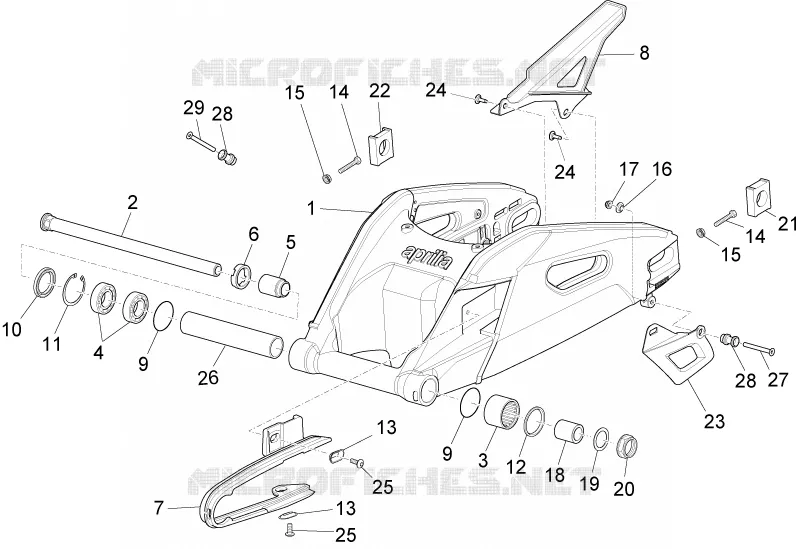

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
