1
Engine displacement
1000
2
Model
RSV4
3
Year
2016
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog
Clutch cover
6
Parts Diagram
Parts Catalog
Front wheel
by
ABS Brake system

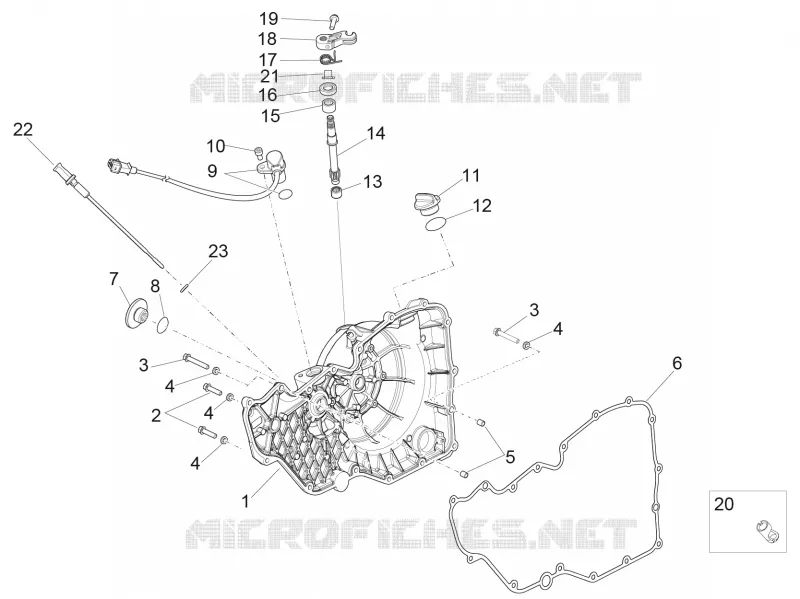

Clutch cover
1
2
3
3
4
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
Clutch cover
2A000572
Not Available
2
Screw w/ flange
857429
£2,48 Unit Price incl. VAT
3
Screw w/ flange
857436
£2,48 Unit Price incl. VAT
4
Spring washer 6,4x11x0,5*
AP8150429
Not Available
5
Pin
411209
£4,56 Unit Price incl. VAT
6
Gasket
857451
£76,86 Unit Price incl. VAT
7
Inspection cover
857543
£39,14 Unit Price incl. VAT
8
O-ring
857078
£2,47 Unit Price incl. VAT
9
Encoder sensor
832029
Not Available
10
Hex socket screw
122675
£0,38 Unit Price incl. VAT
11
Oil load plug
974229
£10,79 Unit Price incl. VAT
12
O-ring 4075
AP8144424
£2,48 Unit Price incl. VAT
13
Roller cage 10x14x10
B045225
£3,85 Unit Price incl. VAT
14
Shaft pin d.12
857498
Not Available
15
12x8x12 roller bearing
B045224
£7,79 Unit Price incl. VAT
16
Gasket ring 12x22
857127
Not Available
17
Clutch lever return spring
857461
£8,02 Unit Price incl. VAT
18
Clutch control lever
857314
£71,42 Unit Price incl. VAT
19
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
20
Clutch control pin bushing
B043542
£89,29 Unit Price incl. VAT
21
T bush
857460
£7,85 Unit Price incl. VAT
22
Oil dipstick
2A000573
£37,57 Unit Price incl. VAT
23
O-ring 9x1.5
2A000632
£0,36 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
