Engine displacement
1000
2
Model
RSV4
3
Year
2016
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog
Gear box - Gear assembly
6
Parts Diagram
Parts Catalog
Drive shaft
by
Water pump
Gear box - Gear assembly
1
2
3
4
5
6
6
7
8
8
8
8
9
9
10
11
12
13
13
14
14
14
15
16
16
16
17
17
18
19
20
21
22
23
24
25
25
26
27
28
28
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
54
55
56
57
1
Trasmission support
2A000436
£114,37 Unit Price incl. VAT
2
Ball bearing 25x62x17
898634
£15,42 Unit Price incl. VAT
3
Ball bearing 20x52x15
898635
£14,38 Unit Price incl. VAT
4
Check bearing plate
AP9150145
£41,72 Unit Price incl. VAT
5
Check bearing plate
857271
£13,02 Unit Price incl. VAT
6
screw M6x16
AP8152166
£4,01 Unit Price incl. VAT
7
Ball bearing 25x42x9
857250
£11,84 Unit Price incl. VAT
8
Spring
857175
£8,02 Unit Price incl. VAT
9
Fork shaft
2A000440
£33,54 Unit Price incl. VAT
10
Driven shaft
857236
£326,44 Unit Price incl. VAT
10
Driven shaft
2A000551
Not Available
11
1st gear on the sec. Z=39
2A000283
£182,96 Unit Price incl. VAT
12
Washer 30x40x1,5
857308
£15,91 Unit Price incl. VAT
13
Clearance washer
857247
£20,42 Unit Price incl. VAT
14
Circlip D30
857248
£5,14 Unit Price incl. VAT
15
Roller cage 30x35x13
857309
£92,64 Unit Price incl. VAT
16
Roller cage 24x28x13
857233
£87,47 Unit Price incl. VAT
17
Roller cage 26x30x15,6
857244
£87,47 Unit Price incl. VAT
18
5th gear on the sec. Z=31
2A000287
£189,32 Unit Price incl. VAT
18
Missing description
2A000556
Not Available
19
3rd gear on the sec. Z=34
2A000285
£166,24 Unit Price incl. VAT
20
2nd gear on the sec. Z=33
2A000284
£178,76 Unit Price incl. VAT
21
6th gear on the sec. Z=34
2A000288
£245,30 Unit Price incl. VAT
21
Missing description
2A000557
Not Available
22
4th gear on the sec. Z=31
2A000286
£167,41 Unit Price incl. VAT
23
Washer 24x35x1
857246
£15,91 Unit Price incl. VAT
24
Washer 20,1x33,5x2,5
857245
£14,26 Unit Price incl. VAT
25
Fork
2A000454R
Not Available
26
Ball bearing 30X72X19
898633
£25,27 Unit Price incl. VAT
27
Fork
2A000453R
£254,58 Unit Price incl. VAT
28
Washer for shafts
857232
£5,14 Unit Price incl. VAT
29
Clearance washer
857234
£20,42 Unit Price incl. VAT
30
6th gear on the sec. Z=27
2A000281
£124,98 Unit Price incl. VAT
31
5th gear on the sec. Z=23
2A000280
£190,90 Unit Price incl. VAT
32
2nd gear on the sec. Z=16
2A000278
£83,14 Unit Price incl. VAT
33
3rd-4th pinion gear Z=20/21
2A000554
£374,59 Unit Price incl. VAT
34
Primary gear shaft
2A000552
£366,78 Unit Price incl. VAT
34
Primary gear shaft
857458
£394,68 Unit Price incl. VAT
35
Shift cam
857251
£223,34 Unit Price incl. VAT
36
Index washer
857123
Not Available
37
Index assy. lever
857274
£40,28 Unit Price incl. VAT
38
Washer D6,3x18x1
AP9150051
£4,80 Unit Price incl. VAT
39
Screw w/ flange M6x15
AP9150006
£13,28 Unit Price incl. VAT
40
Spring
2A000048
£7,40 Unit Price incl. VAT
41
Gear shaft+spring cpl.
857253
£122,86 Unit Price incl. VAT
42
Screw w/ flange M10x35
AP8152318
£3,62 Unit Price incl. VAT
43
Pinion Z=16
890827
£74,64 Unit Price incl. VAT
44
Belleville spring
854909
£2,17 Unit Price incl. VAT
45
T bush
854951
£9,96 Unit Price incl. VAT
46
O-ring
857279
Not Available
47
Gear position sensor
857265
£157,74 Unit Price incl. VAT
48
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
49
Threaded pin
899599
£14,77 Unit Price incl. VAT
50
Ball bearing 20x52x15
898636
£15,42 Unit Price incl. VAT
51
Fasten spring
857260
£18,00 Unit Price incl. VAT
52
Spring
2A000047
£10,07 Unit Price incl. VAT
53
Hex socket screw M6x16 inox
GU98370616
£2,48 Unit Price incl. VAT
54
Pin M8x12
857427
£2,23 Unit Price incl. VAT
55
12x8x12 roller bearing
B045224
£7,79 Unit Price incl. VAT
56
Roller cage HK1512
857249
£28,31 Unit Price incl. VAT
57
Screw w/ flange M8x25
AP8152287
£2,63 Unit Price incl. VAT

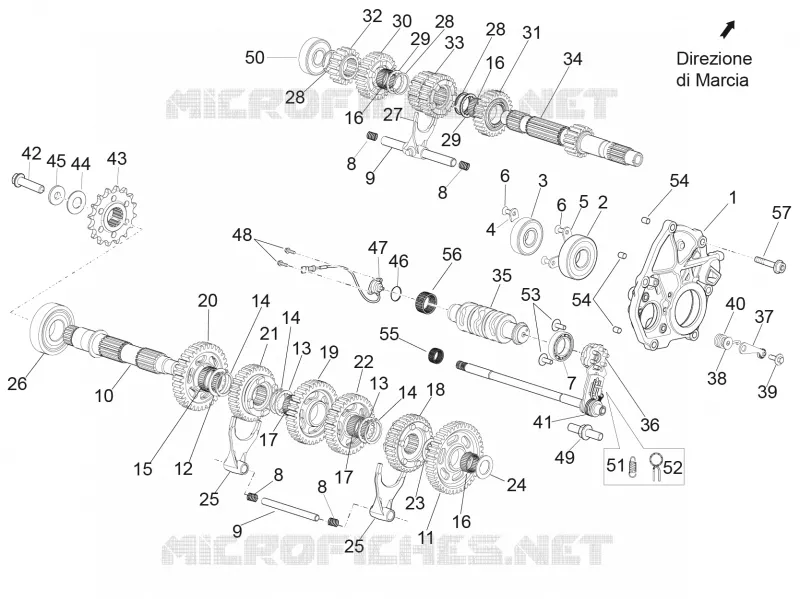

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
