1
Engine displacement
1000
2
Model
RSV4
3
Year
2016
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog
Steering
6

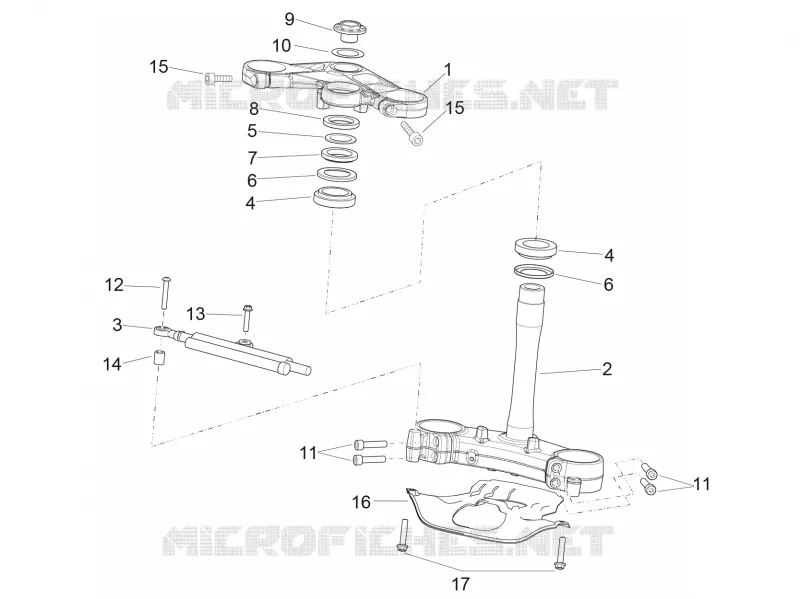

Parts Diagram
Parts Catalog
Front lights
by
Rear mudguard
Steering
1
2
3
4
4
5
6
6
7
8
9
10
11
11
12
13
14
15
15
16
17
1
Upper plate
2B001450
£249,06 Unit Price incl. VAT
2
Lower plate
2B001472
Not Available
3
Steering shock absorber
2B001706
£922,78 Unit Price incl. VAT
4
Axial ball bearing
AP8110077
Not Available
5
Steering security plate
AP8121207
£28,55 Unit Price incl. VAT
6
Dust cover ring
AP8123641
£13,74 Unit Price incl. VAT
7
Ring nut
AP8123642
£25,34 Unit Price incl. VAT
8
Return ring nut
AP8123643
£27,53 Unit Price incl. VAT
9
Upper plate fixing bush
AP8163170
£132,83 Unit Price incl. VAT
10
Stem plug washer
AP8152442
£4,50 Unit Price incl. VAT
11
Hex socket screw M8x35
AP8150236
£1,27 Unit Price incl. VAT
12
Screw w/ flange
AP8152283
£2,17 Unit Price incl. VAT
13
Hex socket screw M6x30
AP8150220
£0,89 Unit Price incl. VAT
14
Headlight bush
AP8121718
£1,88 Unit Price incl. VAT
15
Screw
AP8150540
£10,54 Unit Price incl. VAT
16
Front fork lower closing
893113
Not Available
17
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
