1
Engine displacement
1000
2
Model
RSV4
3
Year
2016
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog
Engine-Completing part-Lever
6
Parts Diagram
Parts Catalog
Starter / Electric starter
by
Clutch control
Engine-Completing part-Lever
1
2
3
4
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
1
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
2
Spacer
AP8120253
£1,66 Unit Price incl. VAT
3
Gear lever
852480
£58,36 Unit Price incl. VAT
4
Hex socket screw M6x20
AP8224470
£1,27 Unit Price incl. VAT
5
Bush
898133
£10,54 Unit Price incl. VAT
6
O-ring 115
AP8220177
£0,08 Unit Price incl. VAT
7
Sprocket cover
2B001549
Not Available
8
Spacer
2B001932
£3,25 Unit Price incl. VAT
9
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
10
Engine cpl.
CM265602
Not Available
11
Quick shift device
B043834
£319,91 Unit Price incl. VAT
12
Bush
898134
£10,54 Unit Price incl. VAT
13
Screw M6x35
898463
£2,48 Unit Price incl. VAT
14
Gear control tie rod
897594
£47,53 Unit Price incl. VAT
15
Gear lever
897360
£159,38 Unit Price incl. VAT
16
Brake lever pin
AP8121221
£22,68 Unit Price incl. VAT
17
Lever rubber
AP8120912
£3,68 Unit Price incl. VAT
18
Low nut M8
AP8150431
£1,94 Unit Price incl. VAT
19
Washer 8,5x15x0,8
AP8150376
£1,76 Unit Price incl. VAT
20
Washer 10,5x21x2*
AP8150020
£1,88 Unit Price incl. VAT
21
O-ring 11,11x1,78
AP8144007
£1,39 Unit Price incl. VAT
22
Lever pin
884033
Not Available
23
Circlip d9
AP8150462
£1,39 Unit Price incl. VAT
24
Microswitch
899191
£133,33 Unit Price incl. VAT
25
Chain guide
858923
£23,90 Unit Price incl. VAT

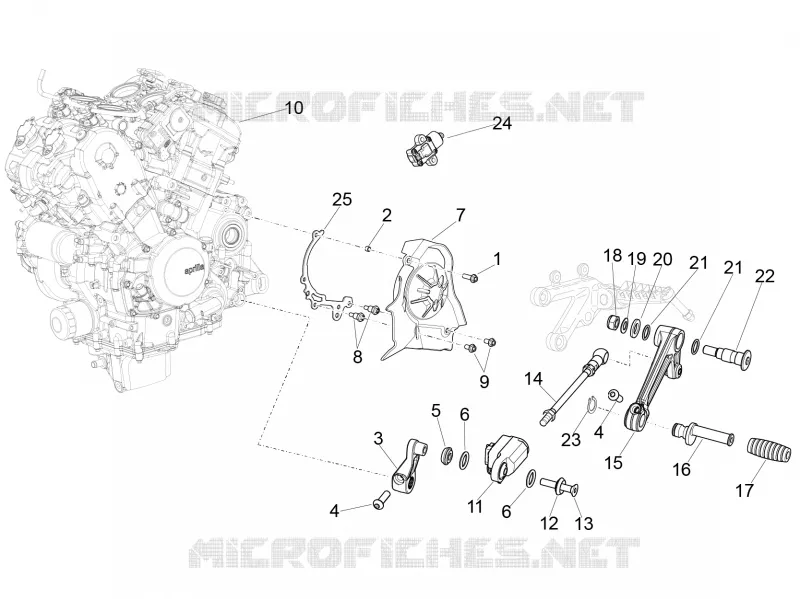

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
