1
Engine displacement
1000
2
Model
RSV4
3
Year
2016
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog

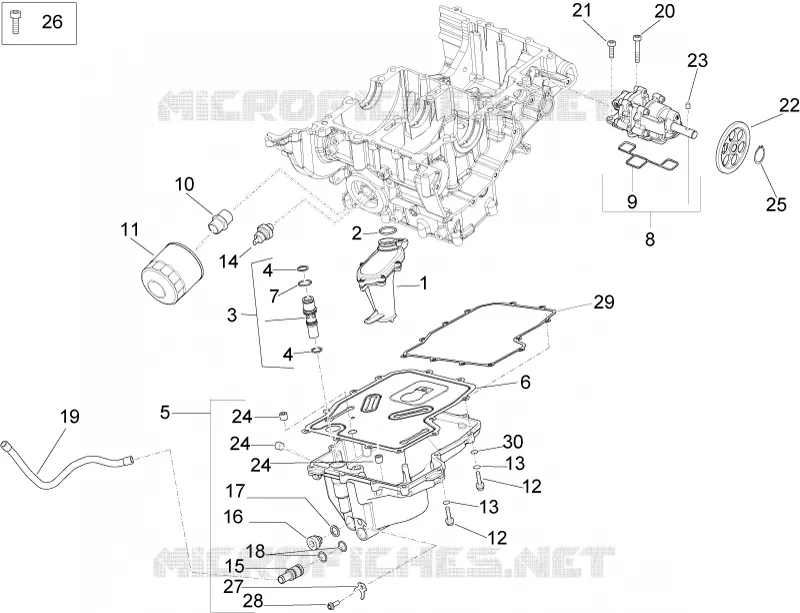

Lubrication
6
Parts Diagram
Parts Catalog
Front fork Ohlins
by
Front cylinder timing system
Lubrication
1
2
3
4
4
5
6
7
8
9
10
11
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
24
24
25
26
27
28
29
30
1
Oil strainer
2A000595
£49,07 Unit Price incl. VAT
2
Or packing 24x2,5 - 80 FKM
B046072
£7,12 Unit Price incl. VAT
3
Assy overpressure oil valve
2A0002535
Not Available
4
O-ring
857176
£2,12 Unit Price incl. VAT
5
Motor oil cup
2A000331
Not Available
6
Sump gasket
2A000576
£32,02 Unit Price incl. VAT
6
Sump gasket
2A000311
Not Available
7
O-ring
2A000276
£2,44 Unit Price incl. VAT
8
Oil pump
2A000540
£332,02 Unit Price incl. VAT
9
O-ring
857189
£12,88 Unit Price incl. VAT
10
Oil filter union
857168
£15,00 Unit Price incl. VAT
11
Oil filter
857187
Not Available
12
Screw w/ flange M6x30
289731
Not Available
13
Washer
016335
Not Available
13
Spring washer 6,4x11x0,5*
AP8150429
Not Available
14
Oil pressure sensor
641541
Not Available
15
Oil inlet pipe
2A000357
£5,20 Unit Price incl. VAT
16
Cover
857184
£6,22 Unit Price incl. VAT
17
Gasket OR
857147
£2,47 Unit Price incl. VAT
18
O-ring
857176
£2,12 Unit Price incl. VAT
19
Oil pipe
2B001806
£56,04 Unit Price incl. VAT
20
Hex socket screw
277330
£0,89 Unit Price incl. VAT
21
Hex socket screw M6x16
709099
£0,14 Unit Price incl. VAT
22
Pump gear
85273R
£124,97 Unit Price incl. VAT
23
Roller 5X19,8
857192
£7,43 Unit Price incl. VAT
24
Conical threaded plug
B044718
£3,73 Unit Price incl. VAT
25
Circlip
006412
Not Available
26
Hex socket screw M6x20
AP8150044
£1,27 Unit Price incl. VAT
27
Retainer plate
2A000358
£11,33 Unit Price incl. VAT
28
screw TBEI M6x16
2A000621
Not Available
29
Gasket
857452
£34,00 Unit Price incl. VAT
30
Washer 6.4x13x1.5
013777
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
