1
Engine displacement
660
2
Model
RS
3
Year
2020
4
Trim
RS 660 4T 8V Euro 5 ABS
5
Parts Catalog
FRONT ELECTRICAL SYSTEM
6
Parts Diagram
Parts Catalog
FRONT FAIRING
by
FLYWHEEL COVER
FRONT ELECTRICAL SYSTEM
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
Câblage principal
2D000458
£786,76 Unit Price incl. VAT
2
Régulateur de tension
1A012332
£181,57 Unit Price incl. VAT
3
Couvercle dispositif dém.
2B006603
£6,97 Unit Price incl. VAT
4
Relay 12V-30A
AP8224462
£24,32 Unit Price incl. VAT
5
Starter relay
582690
£37,98 Unit Price incl. VAT
6
Flexible support
582906
Not Available
7
Fuse 30A
581440
Not Available
8
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
9
Spring
CM013201
£0,76 Unit Price incl. VAT
10
Hex socket screw M6x30
AP8152128
£1,88 Unit Price incl. VAT
11
Washer 6,6x18*
AP8150179
£1,27 Unit Price incl. VAT
12
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
13
T bush *
AP8121075
£1,96 Unit Price incl. VAT
14
Instrument support
890760
£16,21 Unit Price incl. VAT
15
Connecting
2D000348
£1,33 Unit Price incl. VAT
16
Sheet edge spring
CM013203
£2,45 Unit Price incl. VAT
17
Ressort connecteurs
1D000129
£1,57 Unit Price incl. VAT
18
Horn
863339
£33,18 Unit Price incl. VAT
19
Screw w/ flange
AP8152285
£1,88 Unit Price incl. VAT
20
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
21
Câblage lumière plaque
2D000627
£33,86 Unit Price incl. VAT
22
Collier
2D000676
£4,69 Unit Price incl. VAT
23
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
24
Air temp. Sensor
AP8124936
£82,98 Unit Price incl. VAT
25
Cable-guide
AP8221310
£2,96 Unit Price incl. VAT

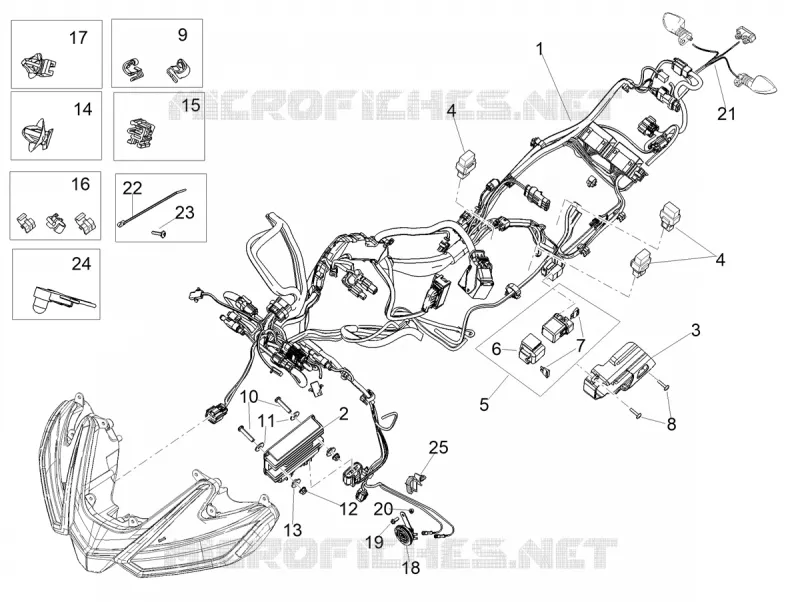

Find the detailed FRONT ELECTRICAL SYSTEM APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
