1
Engine displacement
660
2
Model
RS
3
Year
2020
4
Trim
RS 660 4T 8V Euro 5 ABS
5
Parts Catalog
TAIL LIGHTS
6
Parts Diagram
Parts Catalog
FRONT BRAKE MASTER CYLINDER
by
TAIL LIGHTS
1
2
3
4
5
6
6
7
8
9
10
10
11
12
13
13
14
14
15
15
1
Feu arrière
2D000546
Not Available
2
Rear reflector
AP8112916
£12,35 Unit Price incl. VAT
3
Feu de plaque
2D000284
£47,20 Unit Price incl. VAT
4
Rear RH turn indicator
2D000137
Not Available
5
Rear LH turn indicator
2D000138
Not Available
6
Hex socket screw M6x20
AP8152137
£2,34 Unit Price incl. VAT
7
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
8
Nut M4
AP8150204
£1,88 Unit Price incl. VAT
9
Washer
AP8150501
£2,48 Unit Price incl. VAT
10
Vis TBEI pré-enduite M4x12
2B002146
£2,32 Unit Price incl. VAT
11
Hex socket screw Black M5x12
896174
£2,48 Unit Price incl. VAT
12
Nut D5
00G04401462
£1,27 Unit Price incl. VAT
13
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
14
T bush
AP8121795
£2,63 Unit Price incl. VAT
15
Rubber spacer
AP8220186
£2,48 Unit Price incl. VAT

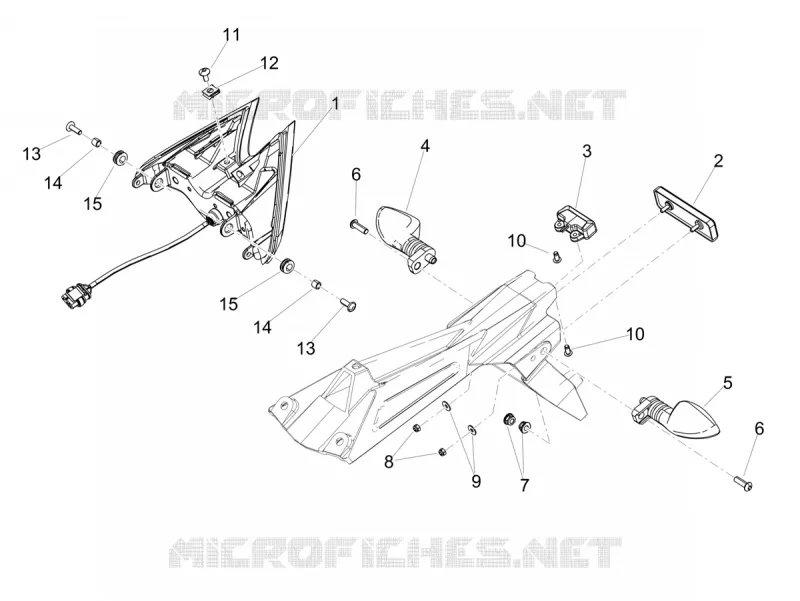

Find the detailed TAIL LIGHTS APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
