1
Engine displacement
1100
2
Model
RSV4
3
Year
2019
4
Trim
RSV4 1100 Racing Factory Euro 4 ABS
5
Parts Catalog
FRONT FORK OHLINS
6
Parts Diagram
Parts Catalog
ENGINE - GEAR LEVER - SPROCKET
by
AIR DUCT

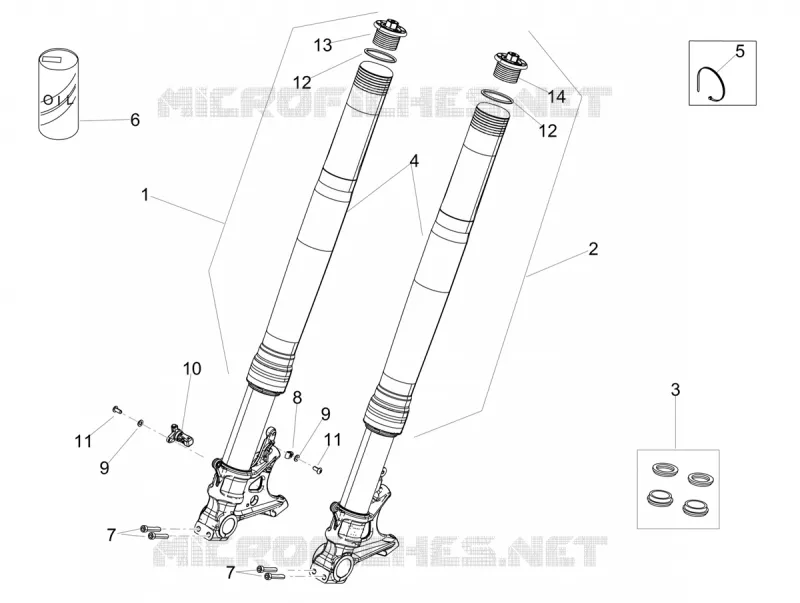

FRONT FORK OHLINS
1
2
3
4
5
6
7
7
8
9
9
10
11
11
12
12
13
14
1
Tige droite cpl.
2B005604
Not Available
2
Tige gauche cpl.
2B005605
Not Available
3
Joints moteur-série
2B006021
£118,63 Unit Price incl. VAT
4
Fourreau .
2B006020
£785,71 Unit Price incl. VAT
5
Hose clamp 155x2
AP8102386
£0,18 Unit Price incl. VAT
6
Front fork oil 1 lt.
AP8116071
£80,99 Unit Price incl. VAT
7
vis
2B006022
£28,44 Unit Price incl. VAT
8
Fairlead
B046190
£4,45 Unit Price incl. VAT
9
Washer 5,3X10X1
AP8150177
£0,06 Unit Price incl. VAT
10
Sensor ABS
859792
Not Available
11
Hex socket screw M5x12
AP8152267
£2,36 Unit Price incl. VAT
12
Ring
2B005852
£27,36 Unit Price incl. VAT
13
Bouchon de fourche D
2B006019
£278,78 Unit Price incl. VAT
14
Bouchon de fourche G.
2B006017
£303,61 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
