1
Engine displacement
1100
2
Model
RSV4
3
Year
2019
4
Trim
RSV4 1100 Racing Factory Euro 4 ABS
5
Parts Catalog

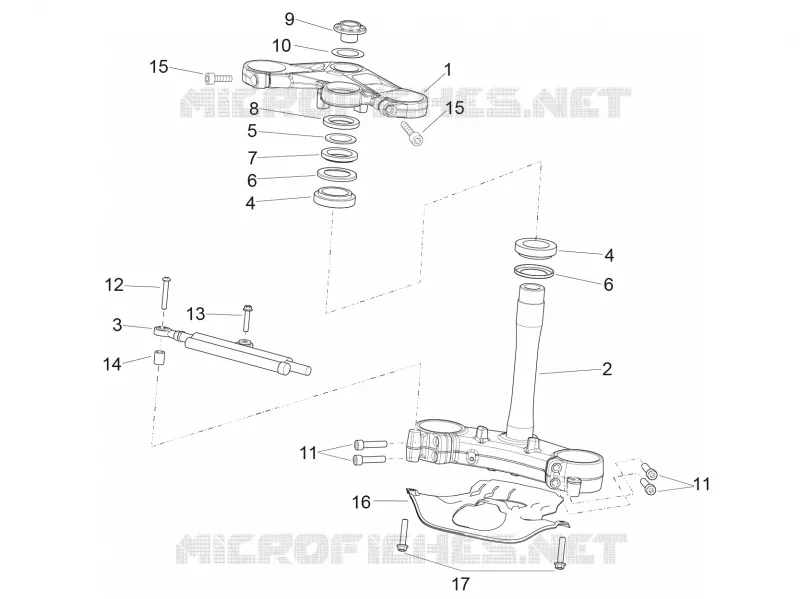

STEERING
6
Parts Diagram
Parts Catalog
by
FRONT BRAKE CALIPER
STEERING
1
2
3
4
4
5
6
6
7
8
9
10
11
11
12
13
14
15
15
16
17
1
Plaque supérieure de fourche
2B0058875
Not Available
2
Plaque inf.
2B005929
£741,67 Unit Price incl. VAT
3
Steering shock absorber
2B001706
£922,78 Unit Price incl. VAT
4
Axial ball bearing
AP8110077
Not Available
5
Steering security plate
AP8121207
£28,55 Unit Price incl. VAT
6
Dust cover ring
AP8123641
£13,74 Unit Price incl. VAT
7
Ring nut
AP8123642
£25,34 Unit Price incl. VAT
8
Return ring nut
AP8123643
£27,53 Unit Price incl. VAT
9
Upper plate fixing bush
AP8163170
£132,83 Unit Price incl. VAT
10
Stem plug washer
AP8152442
£4,50 Unit Price incl. VAT
11
Hex socket screw M8x35
AP8150236
£1,27 Unit Price incl. VAT
12
Screw w/ flange
AP8152283
£2,17 Unit Price incl. VAT
13
Hex socket screw M6x30
AP8150220
£0,89 Unit Price incl. VAT
14
Headlight bush
AP8121718
£1,88 Unit Price incl. VAT
15
Screw
AP8150540
£10,54 Unit Price incl. VAT
16
Fermeture inf. Fourche
2B005955
£14,84 Unit Price incl. VAT
17
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
