1
Engine displacement
1100
2
Model
RSV4
3
Year
2019
4
Trim
RSV4 1100 Racing Factory Euro 4 ABS
5
Parts Catalog

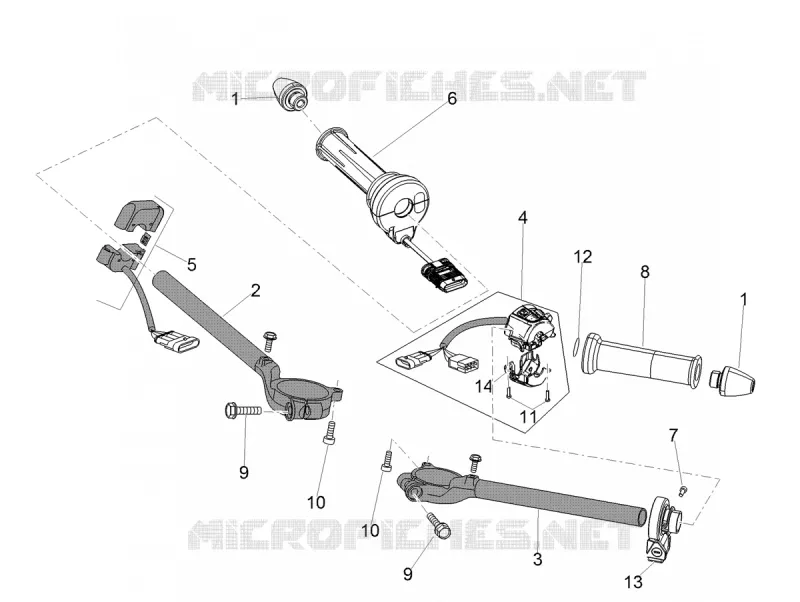

HANDLEBAR - CONTROLS
6
Parts Diagram
Parts Catalog
SPEEDOMETER
by
SWINGARM
HANDLEBAR - CONTROLS
1
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
14
1
Masse antivibratile guidon
2B005874
£52,73 Unit Price incl. VAT
2
Right half handlebar
2B0034384
Not Available
3
Left half handlebar
2B0034374
Not Available
4
SX command
2D0002965
£447,95 Unit Price incl. VAT
5
RH lights selector
B045021
£155,14 Unit Price incl. VAT
6
Electronic gas control
2D000095
£282,76 Unit Price incl. VAT
7
Hex socket screw M4x10
AP8152043
£1,88 Unit Price incl. VAT
8
LH hand grip
856027
£10,19 Unit Price incl. VAT
9
Screw M8x35
AP8150543
£13,28 Unit Price incl. VAT
10
Hex socket screw M6x16
AP8150137
£1,27 Unit Price incl. VAT
11
Cylindrical screw
2B003974
£0,40 Unit Price incl. VAT
12
O-ring 3075
AP8120190
£4,14 Unit Price incl. VAT
13
Selector control bracket
852398
£141,66 Unit Price incl. VAT
14
Lower shell
2D000298
£4,16 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
