1
Engine displacement
1100
2
Model
RSV4
3
Year
2019
4
Trim
RSV4 1100 Racing Factory Euro 4 ABS
5
Parts Catalog
AIR DUCT
6
Parts Diagram
Parts Catalog
FRONT FORK OHLINS
by
CENTRAL FAIRINGS
AIR DUCT
15
1
2
3
3
4
4
5
5
6
7
8
8
9
10
10
11
12
13
14
1
Front fairing DX
2B001540000XN6
Not Available
2
Front fairing SX
2B001541000XN6
£164,96 Unit Price incl. VAT
3
Screw 4,2x20*
AP8150270
£0,98 Unit Price incl. VAT
4
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
5
Hex socket screw Black M5x12
896174
£2,48 Unit Price incl. VAT
6
LH Upper Air duct
2B001921
£9,54 Unit Price incl. VAT
7
LH Lower Air duct
858818
Not Available
8
RH-LH Gasket
858819
£10,66 Unit Price incl. VAT
9
LH lower support
858926
£8,00 Unit Price incl. VAT
10
Washer for shafts D5
AP8150450
£2,20 Unit Price incl. VAT
11
RH Upper Air duct
2B001922
£9,54 Unit Price incl. VAT
12
RH Lower Air duct
858907
£18,10 Unit Price incl. VAT
13
RH lower support
858925
£8,00 Unit Price incl. VAT
14
Black hose 98x2*
AP8120422
£1,49 Unit Price incl. VAT
15
Screw 4,2x20*
AP8150270
£0,98 Unit Price incl. VAT

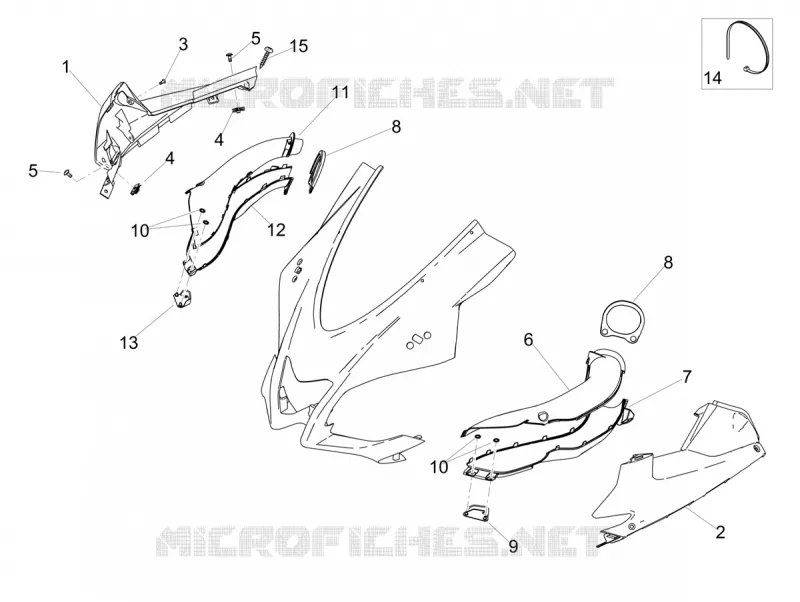

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
